Capping Fixtures Cylinders

Harga : Rp 1,000.00

Brand : Lokal,Ele,Matest,Gilson,Forney,Humboldt,Control,UTest,

Stok : In Stock

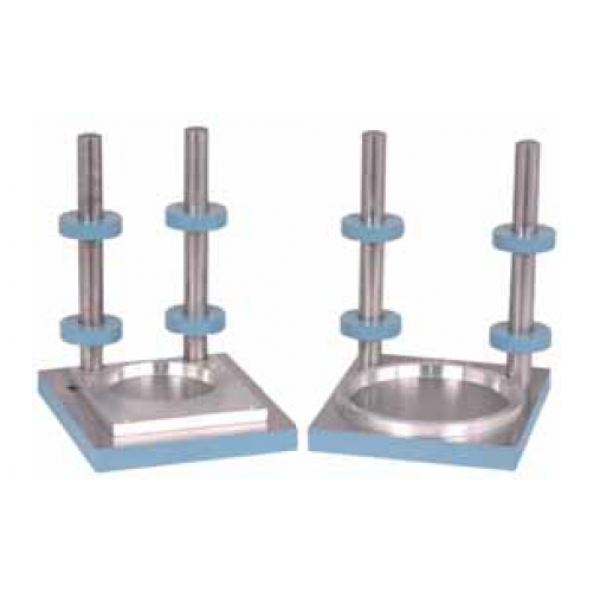

Capping Fixtures Cylinders


ASTM C31 C39 C192 C617 AASHTO T22 T23 T126 T231 EN 12390-3

Capping fi xtures are used when applying capping compound to the ends of concrete cylinders in preparation for compression testing. Melted capping compound is poured into the ring portion of the capping fi xture base and the cylinder is placed in the fi xture. The vertical arms keep the cylinder in vertical orientation so that the top and bottom surfaces remain perpendicular. The capping fi xture consists of a 1 inch (25.4 mm) thick base plate ground to maintain planeness within 0.002 inch (0.05 mm) in 6 inch (152 mm); a 3, 4 or 6 inch (76, 102 or 152) mm retainer ring; and a heavy-duty vertical arm assembly for centering cylinders

Model Shipping Weight Product Number
Cylinder Capping Fixture, 6 in (15.2 cm) diameter 28 lb (12.7kg) LA-0101
Cylinder Capping Fixture, 4 in (10.2 cm) diameter 29 lb (13.2kg) LA-0103
Cylinder Capping Fixture, 3 in (7.6 cm) diameter 29 lb (13.2kg) LA-0104
Parts and Accessories Product Number
Retainer Ring, 6 in (15.2 cm), for Cylinder Capping Fixture LA-0100-03
Retainer Ring, 4 in (10.2 cm), for Cylinder Capping Fixture LA-0100-04
Retainer Ring, 3 in (7.6 cm), for Cylinder Capping Fixture LA-0100-05
