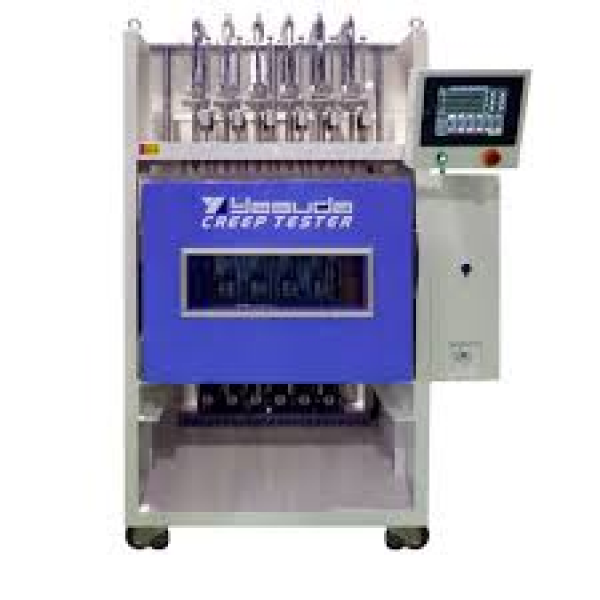

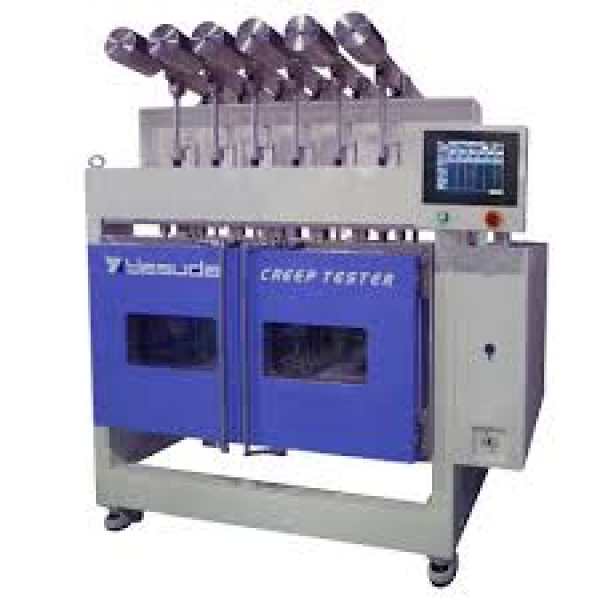

CREEP TESTER (Static Strain, Bending, Compression) Measurement

Harga : Rp 0.00 Rp 0.00

Brand : Qualitest,Yasuda Seiki,Toyoseiki,Drick

Stok : In Stock




CREEP TESTER (Static Strain, Bending, Compression) Measurement
  • No.145-A/No.145-B CREEP TESTER (PULLEY TYPE/ BALANCE TYPE)
  • Standard Method : JIS-K7115、ASTM-D2990、ISO-899-1
  • This tester is used to measure the increasing creep by applying static load to plastic test specimens. By choosing the Chuck, the tester enables to conduct tensile test, condensation test, and bending test. The tester can also be assorted with test functions such as relaxation test, heat shrinkage test, and thermal impulse test.


CREEP TESTER (Static Strain, Bending, Compression) Measurement

Click Here : Catalog Creep Tester Series


Model CREEP TESTER (PULLEY TYPE) CREEP TESTER (BALANCE TYPE)
Hangings 3, 6, or 10 Hangings (3 kinds) 3, 6, or 10 Hangings (3 kinds)
Specimen See JIS-K7162 for reference JIS-K7162 See JIS-K7162 for reference JIS-K7162
Load Method Pulley Wheel Type Balance Scale Type
Weight Load Max. 500 N （50 kgf） Max. 5 kN （500 kgf）
Displacement
Measurement		 Magnetic Linear Scale 1/100 mm,
Stroke 0 to Max. ± 150 mm
Temperature
Range		 Max. 200 °C Max. 200 °C
Software Windows Compatible Windows Compatible
Option Compression Jig, Bending Jig, Low Temperature Oven, Constant Temperature & Humidity Oven, Divided Oven, Liquid Immersion Bath,Gauge Length Measuring Spec, Weight Traveling System (WTS)
Power Source Differ by Specifications. Differ by Specifications.
Dimensions /
Weight (Approx.)		 Differ by Specifications. Differ by Specifications.

====================================================

  • No.145-C HYBRID CREEP TESTER (STRESS RELAXATION TESTER)
  • Standard Method : JIS-K7115, ASTM-D2990, ISO-899-1(CREEP TEST), JIS-K6263, ISO-3384(STRESS RELAXATION TEST)
  • By equipping a load cell to the usual CREEP TESTER, this tester enables to test stress relaxation of vulcanized rubber and thermoplastic rubber. By choosing the Chuck, the tester enables to conduct the tensile stress relaxation test and the condensation stress relaxation test. The tester can also be assorted with test functions such as heat shrinkage test and thermal impulse test.
No.145-C Hybrid Creep Tester (Stress Relaxation Tester)
Specification
Hangings 3, 6 or 10 Hangings, (3 kinds)
Specimen See JIS-K6263 for reference
Load Method Pulley Wheel Type or Balance Scale Type
Weight Load Load Cell, Max. 500 N (50 kgf)
Load Detection Magnetic Linear Scale 1/100 mm, Stroke 0 to Max. ± 40 mm (Required confirmation)
Displacement
Measurement		 Max. 200 °C
Temperature Range Windows Compatible
Software Compression Jig, Bending Jig, Low Temperature Oven, Constant Temperature & Humidity Oven, Divided Oven, Liquid Immersion Bath,Gauge Length Measuring Spec,Weight Traveling System (WTS)
Power Source Differ by Specifications.
Dimensions /
Weight (Approx.)		 Differ by Specifications.

====================================================

  • No.145-SV CREEP TESTER (SERVOMOTOR TYPE)
  • Standard Method : JIS-K7115, ASTM-D2990, ISO-899-1(CREEP TEST), JIS-K6263, ISO-3384(STRESS RELAXATION TEST)
  • Adding a servomotor to the usual actual load type creep tester, and detecting the load using a load cell, the servomotor type creep tester can effectively reduce impact when the test specimen breaks, simultaneously saving space. By choosing the Chuck, the tester enables conducting tensile stress relaxation tests and the condensation stress relaxation test. The tester can also be assorted with test functions such as thermal contraction testing and thermal impact testing.
No.145-SV CREEP TESTER (SERVOMOTOR TYPE)
Specification
Hangings 3, 6, or 10 Hangings (3 kinds)
Specimen See JIS-K7162 or JIS-K6263 for reference
Load Method Servomotor Type
Weight Load Max. 5 kN (500 kgf)
Load Detection Load Cell
Displacement
Measurement		 Magnetic Linear Scale 1/100 mm,Stroke 0 to Max. ± 100 mm
Temperature Range Max. 200 °C
Software Windows Compatible
Option Compression Jig, Bending Jig, Low Temperature Oven, Constant Temperature & Humidity Oven, Divided Oven, Liquid Immersion Bath,Gauge Length Measuring Spec, Weight Traveling System (WTS)
Power Source Differ by Specifications.
Dimensions /
Weight (Approx.)		 Differ by Specifications.
