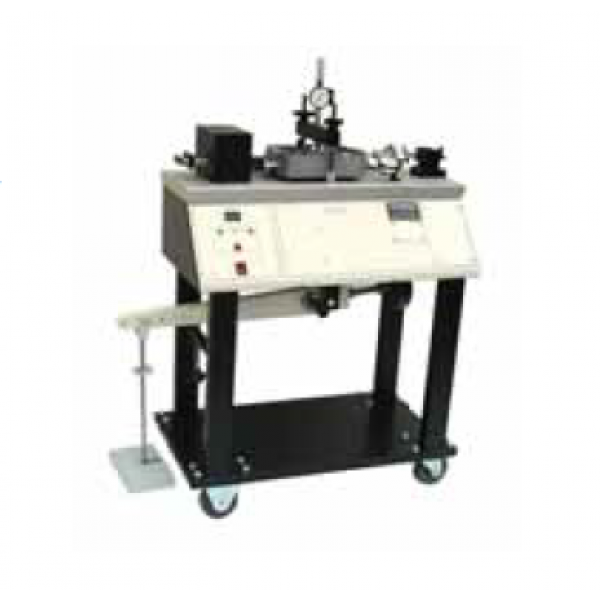

DEAD WEIGHT DIRECT/RESIDUAL SHEAR
Harga : Rp 0.00 Rp 123.00
Brand : Lokal,Ele,Matest,Gilson,Forney,Humboldt,Control,UTest,
Stok : In Stock
DEAD WEIGHT DIRECT/RESIDUAL SHEAR
ASTM D3080 AASHTO T236 BS- 1377 BS 1377:7
Shear unit utilizes dead weight loading system with 10:1 vertical load beam.Digital readout measures shear forces. The vertical and shear displacement is measured with dial indicators 0.5 in X 0.0001 in res. and 1.0 in X 0.001 in res.(12.7 x .00254mm and 25.4 x .0254mm) Optional three channel readout (Model LA-3732-01). Unit includes RS232 serial output cable for sending data to computer.
Unit includes 2.5 in (63.5mm) diameter shear rings, porous stones, drainage plates and water chamber. Maximum shear displacement is 0.8 in (20.3mm). Travel is set with limit switches. Motor drive controls strain rate within 1%, set with digital thumb wheels. Each digit represents 0.0001 in/min (.00254mm/min) strain rate and can be controlled from 0.0001 in to 0.3 in/min (.00254 x 7.62mm/min). Loading and shear box assembly mounted on a sturdy steel cabinet. Upright rods are stainless steel and cabinet has enamel finish.
Shear rings and water chamber are aluminum with anodized/ tefl on fi nish for corrosion resistance. Other size rings are available. Overall height is 54 in (137cm). Cabinet height is 9 in (228.6mm). Length is 36 in (91.4cm). Depth is 14.5 in (36.8cm). Electrical requirements are 110V, 60Hz, 1ph. Maximum vertical load and horizontal shear force is 1,500 lb (680kg) each.
DEAD WEIGHT DIRECT/RESIDUAL SHEAR
| Model | Shipping Weight | Product Number |
| Dead Weight Direct/Residual Shear Instrument | 300 lb (136.4kg) | LA-3732 |
| Parts and Accessories | Product Number |
| Calibration Disk 2.460 in (62.5 mm) dia. x 1 in (25.4 mm) high | LA-3650-10 |
| Cutting ring, stainless steel for 2.5 in (63.5 mm) consolidometers | LA-3650-11 |
| Tamper for 2.5 in (63.5 mm) diameter sample | LA-3650-22 |
| Kilogram weight set, 88 kg | LA-3651-09 |
| Digital Kit , 4 CH for Direct Shear , w/Load Cell, 2 LVDT | LA-3732-01 |
| Shear ring, 2.0 in (50.8mm) diameter | LA-3733 |
| Shear ring, 2.42 in (61.5 mm) diameter | LA-3733-01 |
| Shear ring, 2.5 in (63.5 mm) diameter (included in LA-3731 and LA-3731-01) | LA-3733-02 |
| Shear ring, 4.0 in (101.6 mm) diameter | LA-3733-03 |
| Shear ring, 4.0 in (101.6 mm) square | LA-3733-04 |
