ASTM D1883, ASTM D4429

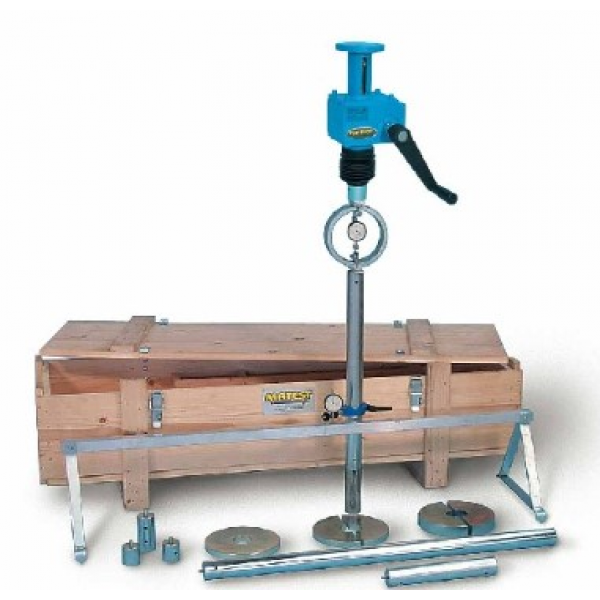

For CBR bearing test of soil in the field. The jack has two speed and alumunium housing swivel is mainly alumunium. Proving ring have calibrated chart and dial. Piston,extensions and connectors and load plate are plated.
Dimension (l x w x h) : 140 x 35 x 35 cm
Gross weight : 75 Kg
Contains products needed to perform field CBR testing
Models available with two-speed or three-speed jacks
Conforms to ASTM and Army Corps of Engineers standards
Mechanical Jack,Cast alumunium housing, 5 tons cap, hand operated, 2 speeds.
Mechanical Jack, 5 tons capacity. 1 pc
Swivel head, cast alumunium. 1 pc
Field Penetration Piston, Machine steel, plated, adjustable height. 1 pc
Penetration Piston, Machine steel, plated, 3 sq.in.cross section area. 1 pc
Extention set, Machined steel, plated, 5 cm, 10 cm, 20 cm, 30 cm, and 60 cm, provided with connecting adaptor. 1 set
Reference Beam, Steel pipe, 150 cm span., 1 set
Circular Surcharge Weight, Machine steel, plated, 10" dia, 10 lbs weight. 1 pc
Slotted Surcharge Weight, Machine steel, plated, 8.5" dia, 10 lbs weight. 1 pc
Slotted Surcharge Weight, Machine steel, plated, 8.5" dia, 20 lbs weight. 1 set
Proving Ring, 2.000 lbs capacity. 1 set
Proving Ring, 10.000 lbs capacity. 1 set
Dial Indicator, range 30 x 0.01 mm. 1 pc
Dial holder, magnetic. 1 pc.
