LOS ANGELES ABRASION MACHINE

Harga : Rp 0.00 Rp 0.00

Brand : Lokal,Matest,Gilson,Forney,Humboldt

Stok : In Stock





LOS ANGELES ABRASION MACHINE

ASTM C131, C535; AASHTO T 96

- Electronic safety interlocks allow operation only with doors secured.

- Powerful 1hp motor rotates drum through slip-clutch protected chain drive.

- Enclosure lined with sound attenuating foam.

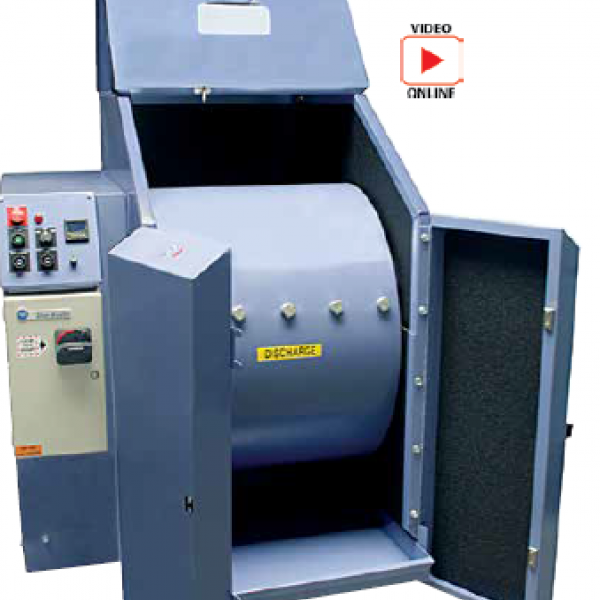

The Los Angeles Abrasion test is widely used as an indicator of relative quality of aggregates. Test measures degradation of standard gradings of aggregates when subjected to abrasion and impact, in a rotating steel drum containing an abrasive charge of steel balls. Up to twelve balls are used, depending on gradation of test sample..Gilson's design has built-in safety features with user controls on the outside of the integral sound enclosure. An electrical interlock allows the machine to operate only when the double-hinged lid is closed and a safety key is inserted. Drum is positioned for loading and unloading using a jog button while watching through a viewing window in the enclosure. Sound is absorbed by the heavy, painted steel enclosure with sound attenuating foam and membrane lining.

The 0.5in (12.7mm) thick welded steel drum has 28in (711mm) ID and 20in (508mm) inside width, and is mounted on a rigid welded steel support frame. The 6in (152mm) wide opening for introducing and discharging sample has a bolted cover which fits flush with inside contour of drum when tightened securely with a dust-tight gasket. A 3.5in (89mm) wide steel shelf, per ASTM's "preferred design extends the full length of the drum interior. The shelf thickness is 1in (25mm) and is attached securely to the drum using fine 0.75in (19mm) x 1.5in (37.5mm) long bolts, providing a firm and rigid shelf that is also easily removed for replacement or maintenance.

A 1hp electronically controlled gear-motor rotates the drum at 30 - 33rpm via enclosed chain drive. Drum assembly rotates in flanged ball bearings with dust seals and grease fittings. Controller console with overload protection has large JOG and On/Off push button controls, and automatic counter stops rotation after a preset number of revolutions. Abrasive charge of twelve hardened steel balls 1.81-1.88in (46-48mm) in diameter and 390-445 grams are included. Heavy-duty catch pan measures 24 x 26 x 2.5in (610 x 660 x 63 mm), WxDxH. Product Dimensions : 38 x 40 x 46.5 in (965 x 1,016 x 1,181mm), WxDxH.

LOS ANGELES ABRASION MACHINE

Los Angeles Abrasion Machine
Los Angeles Abrasion Machine, 220V/60Hz, 1 phase HM-70A
Los Angeles Abrasion Machine 230V/50Hz, 1 phase HM-70AF
