Nucleic Acid Purification System

NUCLEIC ACID PURIFICATION SYSTEM

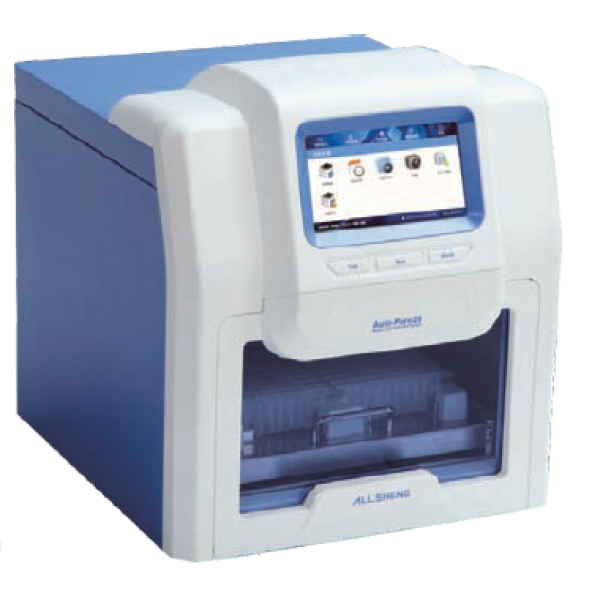

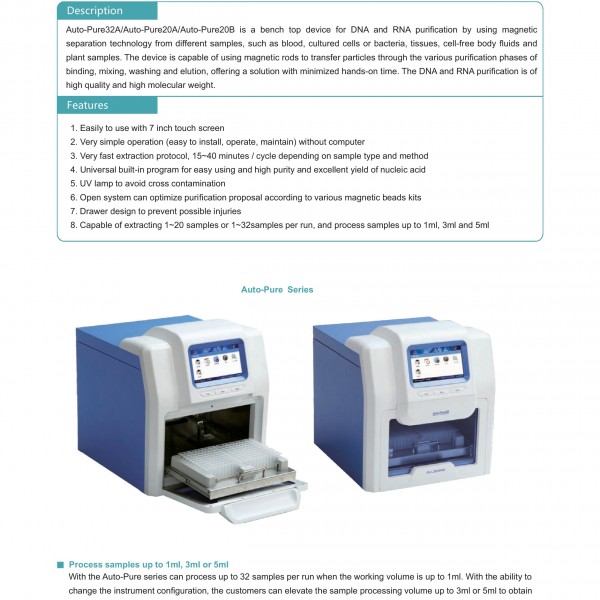

Auto-Pure32A / Auto-Pure20A / Auto-Pure20B is a bench top device for DNA and RNA purification by using magnetic separation technology from different samples, such as blood, cultured cells or bacteria, tissues, cell-free body fluids and plant samples. The device is capable of using magnetic rods to transfer particles through the various purification phases of binding, mixing, washing and elution, offering a solution with minimized hands-on time. The DNA and RNA purification is of high quality and high molecular weight.

FEATURES :

1. Easily to use with 7 inch touch screen

2. Very simple operation (easy to install, operate, maintain) without computer

3. Very fast extraction protocol, 15~40 minutes / cycle depending on sample type and method

4. Universal built-in program for easy using and high purity and excellent yield of nucleic acid

5. UV lamp to avoid cross contamination

6. Open system can optimize purification proposal according to various magnetic beads kits

7. Drawer design to prevent possible injuries

8. Capable of extracting 1~20 samples or 1 - 32 samples per run, and process samples up to 1ml, 3ml and 5ml

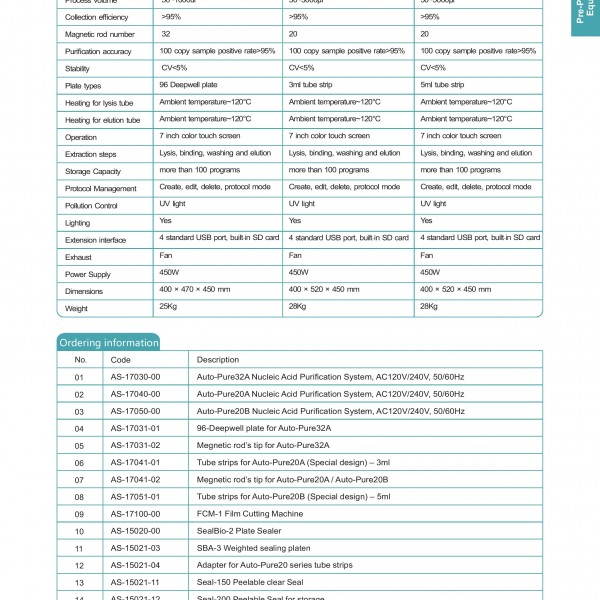

SPESIFICATIONS :

Type	Auto-Pure32A	Auto-Pure20A	Auto-Pure20B
Throughput	1 - 32	1 - 20	1 - 20
Process Volume	50 - 1000ul	50 - 3000μ	50 - 5000μl
Collection Efficiency	> 95%	> 95%	> 95%
Magnetic Rod Number	32	20	20
Purification Accuracy	100 copy sample positive rate > 95%	100 copy sample positive rate > 95%	100 copy sample positive rate > 95%
Stability	CV < 5%	CV < 5%	CV < 5%
Plate Types	96 Deepwell plate	3ml tube strip	5ml tube strip
Heating for Lysis Tube	Ambient temperature - 120°C	Ambient temperature - 120°C	Ambient temperature - 120°C
Heating for Elution Tube	Ambient temperature - 120°C	Ambient temperature - 120°C	Ambient temperature - 120°C
Operation	7 inch color touch screen	7 inch color touch screen	7 inch color touch screen
Extraction Steps	Lysis, binding, washing and elution	Lysis, binding, washing and elution	Lysis, binding, washing and elution
Storage Capacity	more than 100 programs	more than 100 programs	more than 100 programs
Protocol Management	Create, edit, delete, protocol mode	Create, edit, delete, protocol mode	Create, edit, delete, protocol mode
Pollution Control	UV light	UV light	UV light
Lighting	Yes	Yes	Yes
Extension Interface	4 standard USB port, built-in SD card	4 standard USB port, built-in SD card	4 standard USB port, built-in SD card
Exhaust	Fan	Fan	Fan
Power Supply	450W	450W	450W
Dimensions	400 × 470 × 450 mm	400 × 520 × 450 mm	400 × 520 × 450 mm
Weight	25Kg	28Kg	28Kg
