ROTARY ABRASION TESTER

Harga : Rp 0.00

Brand : Yasuda Seiki,Qualitytest and Other

Stok : In Stock





ROTARY ABRASION TESTER

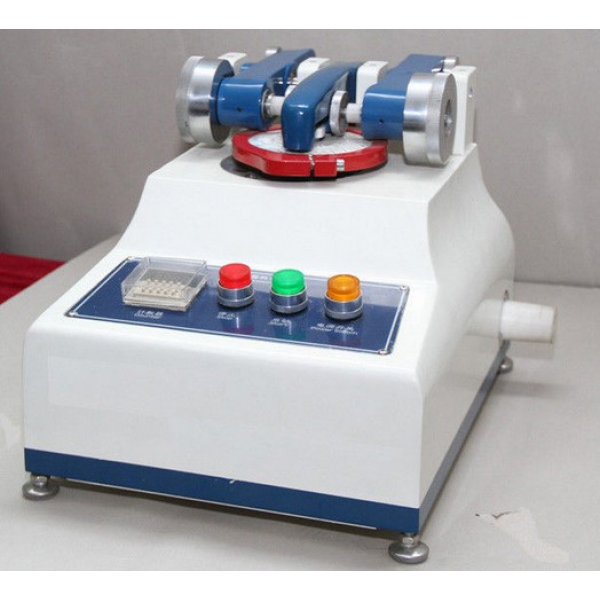

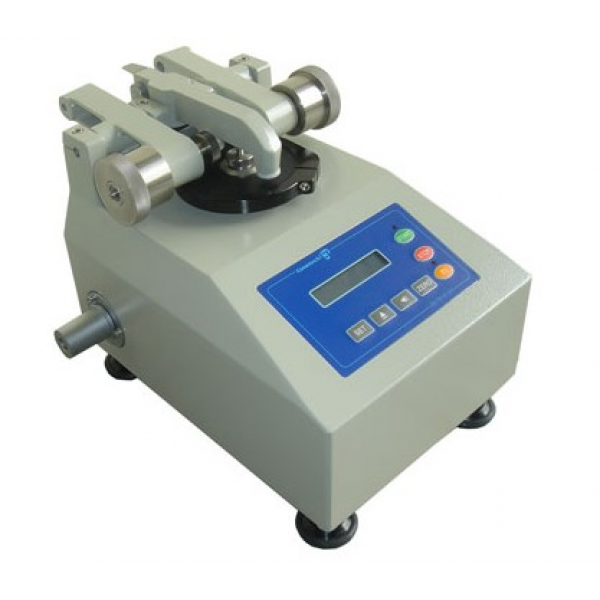

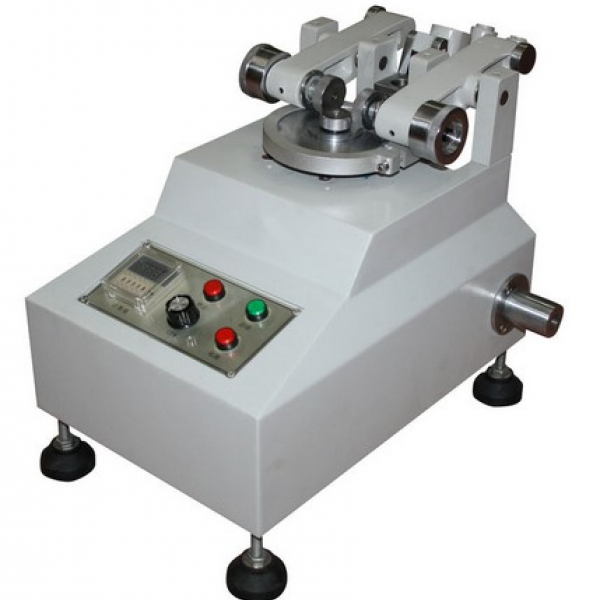

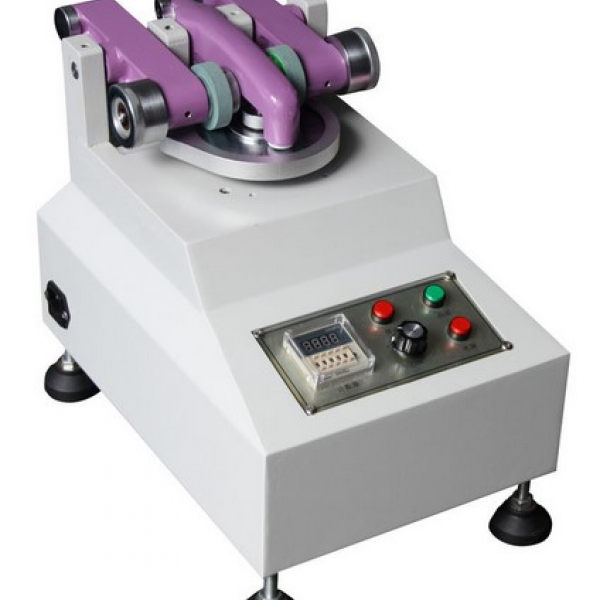

Rotary Abrasion Tester

Standard JIS-A1453、(K5400)、K5600-5-8/9、K5665、K6264-2、K6404-4、K6902、K7204、(L1018)、L1085、L1096、ASTM-D1044、TAPPI-T476、JAS、(JASO-M403)、ISO-4649、5470-1、7784-1/2、9352


This tester is used to evaluate the abrading endurance of flat surface materials when they are abraded with an abrading wheel. The operator is to place the abrading wheel to the rotating test specimen at a prescript load and abrade the test specimen. After the test is finished, the operator is to measure the abraded mass, volume, thickness, and the optical difference of the test specimen. This tester is widely used in testing plastic, rubber, decorative sheet, leather, paper, and paint surface.


Specifications


Turn Table

φ150 mm

Table Rotation Speed

60 ± 2 rpm、70 ± 2 rpm、72 ± 2 rpm

Weight Load

2.45 N(250 gf)、4.9 N(500 gf)、9.8 N(1,000 gf)

Counter 6 Digits Preset Counter

Suction Nozzle Inner φ8 mm: 2 pcs

Option Inlet Pressure Gauge,Safety Cover

Accessories Abrasion Wheel: 1set (2 sets for No.101-H-2), Thickness Guage: 2pcs,
Weight(4.9N,9.8N): 2pcs each,Suction Device (Vacuum Cleaner): 1set
Power Plug Adaptor: 1pc

Power Source 1 Hanging (No.101-H-1):
AC 100 V, 1-Phase, 15 A, 50/60 Hz
2 Hangings (No.101-H-2):
AC 100 V, 1-Phase, 15 A × 2, 50/60 Hz
*2 outlets required


Dimensions/ Weight (Approx.)
1 Hanging (No.101-H-1):
W350 × D350 × H450 mm/ 24 kg
2 Hangings (No.101-H-2):
W700 × D350 × H510 mm/ 45 kg


K Sander (For Abrasion Wheel)


Tool Diamond

Rotation Speed 1,300 rpm to 1,500 rpm (50 Hz)
1,550 rpm to 1,800 rpm (60 Hz)

Accessories
Power Plug Adaptor: 1 pc

Power Source AC 100 V, 1-Phase, 3 A, 50/60 Hz

Dimensions/ Weight (Approx.) W210 × D330 × H380 mm/ 10 kg
