LASER PAVEMENT SECTION TEST SYSTEM

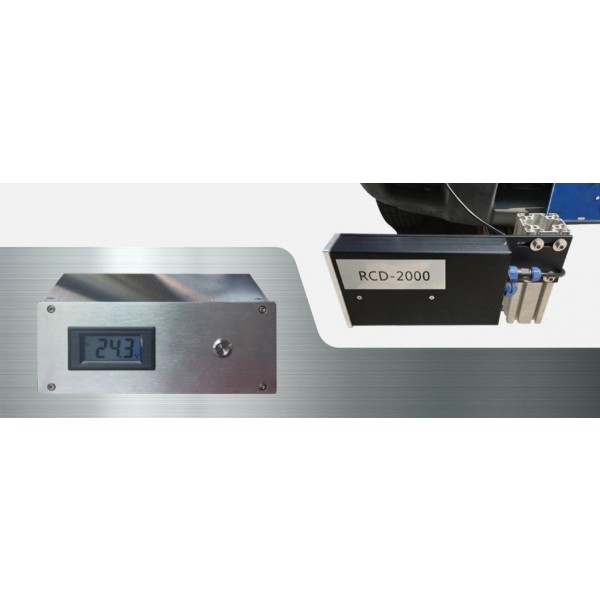

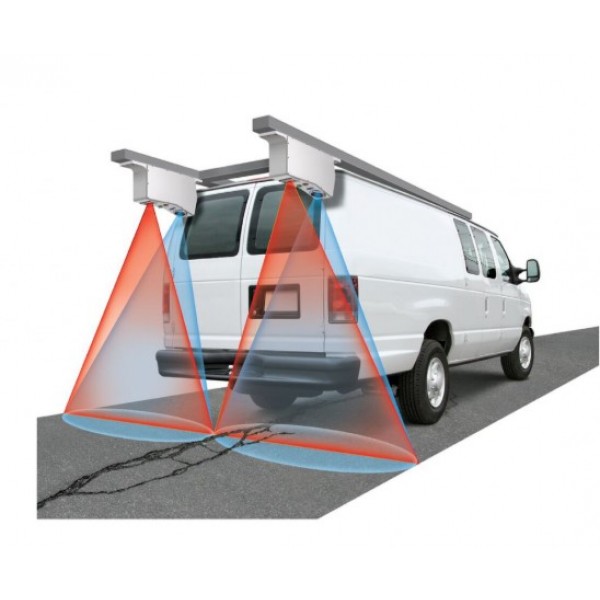

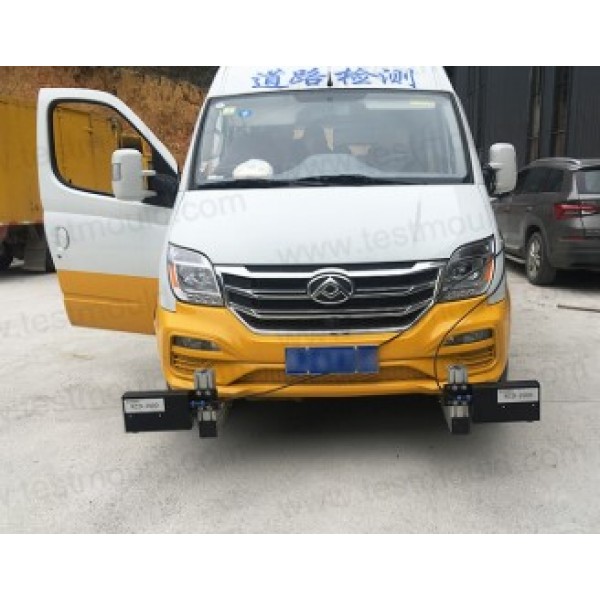

The RCD-2000 is a testing system that can measure and collect data on several different road surface properties. It adopts advanced laser detection technology and traditional inertial reference transfer detection theory, and is widely used to detect the indicators and characteristics of highways, roads, airport runways, etc.
It can measure International roughness index(IRI), Flatness standard deviation (σ), Observation play score (RN), Driving quality index (RQI), Pavement texture depth (SMTD), Wheel ruts, Speed and driving distance, and display each index and distance curve in real time.
LASER PAVEMENT SECTION TEST SYSTEM
Click Here : LASER PAVEMENT SECTION TEST SYSTEM CATALOGUE
STANDARD : ASTM E950
SPECIFICATIONS :
TEST ITEMS :
International roughness index(IRI), Flatness standard deviation (σ), Observation play score (RN), Driving quality index（RQI), Pavement texture depth (SMTD), Wheel ruts, Speed and driving distance.
| LASER PAVEMENT SECTION TEST SYSTEM | |||
| IRI/WHEEL RUTS LASER DEVICE | STRUCTURAL DEPTH LASER | ||
| IRI laser | Riftek RF603 125/500 | Model | Gocator 1350 |
| Wheel ruts laser | Riftek RF603 245/1000 | Response frequency | 20 kHz |
| Response frequency | 9.4kHz | Sampling frequency | 40 kHz |
| Distance from the earth | 375/745mm | Distance from the earth | 300mm |
| Measurement Range | ±250/500mm | Measurement Range | ±100mm |
| Resolution | ＜0.001m | Resolution | ＜0.02mm |
| Protection Grade | IP67 | Protection Grade | IP67 |
| Accuracy | ＜0.5mm | linear | <0.15mm |
| ACCELERATION SENSOR | Communication method | ethernet network | |
| Measurement Range | ±2.5g | DISTANCE SENSOR | |
| Accuracy | <±1% | Pulse number | 2000 Pulse/R |
| Resolution | 1μg | Resolution | ＜0.001m |
| Response frequency | 0.7～7700Hz | Measurement accuracy | <0.05% |
| Sampling interval | ≥1mm(Arbitrarily set) | Vertical profile height detection accuracy | ＜0.5mm |
| IRI range | 0～20m/km | Vertical profile wavelength range | 1mm～200m |
| IRI resolution | 0.1m/km | Continuous test distance | Unlimited |
| Detection Repeatability | Coefficient of deviation CV<3% | Cross Section measure road width | 3500mm |
| DETECTION SPEED | SMTD resolution | 0.01mm | |
| IRI | 20~100km/h | SMTD accuracy | 0.05mm |
| SMTD | 20~70km/h | Wheel ruts test range | 0～200mm |
| Rutting(Wheel ruts) | 20~100km/h | Wheel ruts test resolution | 0.1mm |
| Reporting interval | Any length above 5m | Power supply | DC12V |
