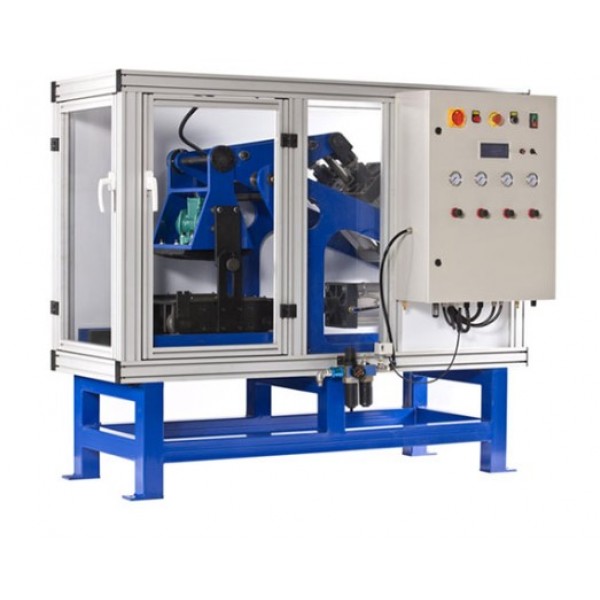

Roller Compactor
The pneumatically powered roller compactor was originally designed to provide a solution to the problem of making homogeneous laboratory specimens large enough to be used for wheel-tracking tests. It is used to compact to either a target mixture density or to provide a standard compactive effort to a range of different asphaltic paving materials. Vibration is available as an option.
Roller Compactor
STANDARD : EN 12697-33
The roller compactor can be used for:
Wheel tracking specimens, beams for fatigue and modulus tests, coring into specimens for use in modulus and permanent deformation tests.
Click Here : Roller Compactor Catalogue
Features :
- Slabs can be from 50 to 100mm thick.
- Slabs can be 305x305mm or 305x405mm
- Vibrating roller
- Safety cage with three side complete vision
- Easy to maintain
- Adopt Japanese Mitsubishi PLC automation control system, safe, reliable and stable; it has perfect selfprotection function, capable of long operation under complicated driving conditions.
- Use Japan Mitsubishi touching screen to realize manmachine interaction with clear and visible Chinese-English interface, operate steadily by easy touch and display real-time data.
- Japanese Panasonic transducer can arbitrarily change vibration frequency between 0-50Hz.
- Fanlike steel roller.
- Maximum compaction load is 55Kn, equivalent to maximum static site rolling compaction.
- One-step molding of test specimen according to preset height or density.
- PLC allows to set times of rolling compaction under each load in sequence of P1, P2, P3 and P4; P1 can be set to minimum times of 2, then add load through P2, P3, and P4.
- Compaction load can be adjusted and set by 4 pressure-regulating valves.
- Vibratory compaction, adjustable frequency, simulated site vibration rolling compaction.
- 3 safe protection doors; opening any of them can break air, cut electricity to protect operator and prevent wrong operation.
- Test specimens can be used to wheel tracking test, and can be used to indirect tensile test after coring, or to be cut for fatigue test.
- Molds easy to insert and remove.
