Universal Testing Machine (100kN - 300kN)
Harga : Rp 0.00
Brand : Cometech,Hoytom,Drick
Stok : In Stock
Universal Testing Machine (100kN - 300kN)
This serial model is capable for the capacity that above 100KN test.
Qualify ASTM、ISO、JIS、GB standard with material and end product. High rigid frame structure and precise servo motor transmission parts supply that offer stable machine operation for our UTM. Suitable for plastic、Textile、Metal、Architecture industry.Also provide the quiet testing environment and high accuracy test result.
- Product Serial Series : QC-501M1F, 502M1F, 503M1F (100 - 300kN)
- Computerized Tensile (Compression) Testing Machine QC-501M1F, 502M1F, 503M1F
- Standard Method : ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
- Click Here : Cometech Universal Testing Machine / Mesin Uji Tarik Brochure
Universal Testing Machine (100kN - 300kN)
- Product Serial Series : QC-501M2F, 502M2F, 503M2F (100 - 300kN)
- Universal Materials Testing Machine QC-501M2F, 502M2F, 503M2F
- Standard Method : ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
- Click Here : Cometech Universal Testing Machine / Mesin Uji Tarik Brochure
Go with Cometech specialist M2F testing software which is used Windows 7/8 of Person computer. It can do tensile test, compression test, bending test and all kind of tests. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis.
The separation design of the UTM and the controller make the Maintenance lot easier in the feature. Effectively decrease the maintenance fee, also extend the life time of machine.The speed of M2F system is capable for 0.0001-375mm/min to increase the testing range.And satisfy more standard requirement.
Industry：Plastic, Textile, Metal and Architecture.
NB : Perusahaan kami PT.Mora Anugerah Berkat sudah terdaftar di E-Katalog
Optional Accessories
1_Grip and Load Cell
Each test will require different test grips and accessories for the plastics, metal, biomedical, composite, elastomer, component, automotive, aerospace, textile and other applications industries.
=>Tensile grip
=> Compression grip
=> Bending grip
=> Peeling/Tearing grip
=> Film friction grip
=> Load cell
Universal Testing Machine (100kN - 300kN)
2_Display
1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7. Various machine shutdown conditions setting (force, displacement, time, elongation).
8. Can be restored to the original factory state.
9. Unit selection can be Metric unit, Imperial units
10. Over-travel, overload protection and overtime machine stop
11. Can store up to 50 data, USB storage data function.
12. Support multiple sets of signal sources.
3_Extensometer
=> QC-557 Short extensometer Suitable for elongation below 50%
=> QC-551 Long travel extensometer Suitable for samples with over 20% elongation
Universal Testing Machine (100kN - 300kN)

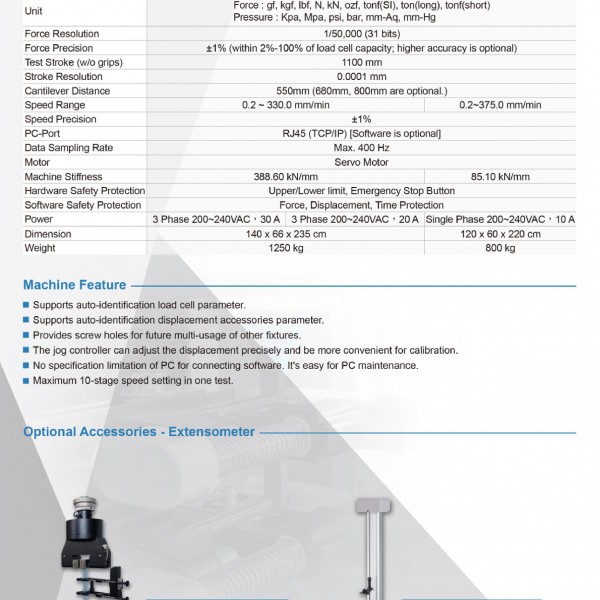

| Model | QC-501M1F | QC-502M1F | QC-503M1F |
| Max Capacity | 300 kN | 200 kN | 100 kN |
| Unit | Force : gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure : Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
||
| Force Resolution | 1/50.000 (31 bit) | 1/50.000 (31 bit) | 1/50.000 (31 bit) |
| Force Precision | ± 1% (within 2% - 100% of load cell capacity ; higher capacity is optional) | ||
| Test Stroke (w/o grips) | 1100 mm | 1100 mm | 1100 mm |
| Stroke Resolution | 0,0001 mm | ||
| Cantilever Distance | 550 mm (680mm, 800mm, are optional) | ||
| Speed Range | 0,2 - 330,0 mm/min | 0,2 - 375,0 mm/min | |
| Speed Precision | ± 1% | ± 1% | ± 1% |
| PC-Port | RJ45 (TCP/IP) Software is Optional | ||
| Data Sampling Rate | Max 1200 Hz | Max 1200 Hz | Max 1200 Hz |
| Motor | Servo Motor | Servo Motor | Servo Motor |
| Machine Stiffness | 388.60 kN/mm | 85.10 kn/mm | |
| Hardware Safety Protection |
Upper/Lower Limit , Emmergency Stop Button | ||
| Software Safety Protection |
Force, Displacement, Time Protection | ||
| Power | 3 Phasa 200 - 240VAC ; 30A |
3 Phasa 200 - 240VAC ; 20A |
3 Phasa 200 - 240VAC ; 10A |
| Dimension | 140 x 66 x 235 cm | 120 x 60 x 220 cm | |
| Weight | 1250 Kg | 800 Kg | |
Universal Testing Machine (100kN - 300kN) | |||

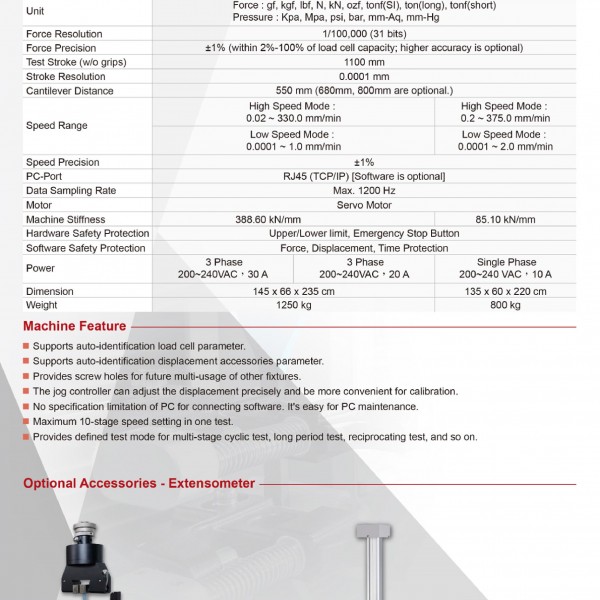

| Model | QC-501M2F | QC-502M2F | QC-503M2F |
| Max Capacity | 300 kN | 200 kN | 100 kN |
| Unit | Force : gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure : Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
||
| Force Resolution | 1/100.000 (31 bit) | 1/100.000 (31 bit) | 1/100.000 (31 bit) |
| Force Precision | ± 1% (within 2% - 100% of load cell capacity ; higher capacity is optional) | ||
| Test Stroke (w/o grips) |
1100 mm | 1100 mm | 1100 mm |
| Stroke Resolution | 0,0001 mm | ||
| Cantilever Distance | 550 mm (680mm, 800mm, are optional) | ||
|
Speed |
High Speed Mode : 0,02 - 330,0 mm/min |
High Speed Mode : 0,02 - 375,0 mm/min |
|
| Low Speed Mode : 0,0001 - 1.0 mm/min |
Low Speed Mode : 0,0001 - 2.0 mm/min |
||
| Speed Precision | ± 1% | ± 1% | ± 1% |
| PC-Port | RJ45 (TCP/IP) Software is Optional | ||
| Data Sampling Rate | Max 1200 Hz | Max 1200 Hz | Max 1200 Hz |
| Motor | Servo Motor | Servo Motor | Servo Motor |
| Machine Stiffness | 388.60 kN/mm | 85.10 kn/mm | |
| Hardware Safety Protection |
Upper/Lower Limit , Emmergency Stop Button | ||
| Software Safety Protection |
Force, Displacement, Time Protection | ||
| Power | 3 Phasa 200 - 240VAC ; 30A |
3 Phasa 200 - 240VAC ; 20A |
3 Phasa 200 - 240VAC ; 10A |
| Dimension | 145 x 66 x 235 cm | 135 x 60 x 220 cm | |
| Weight | 1250 Kg | 800 Kg | |
NB : Perusahaan kami PT.Mora Anugerah Berkat sudah terdaftar di E-Katalog
PT. Mora Anugerah Berkat adalah perusahaan yang sudah berpengalaman dalam menyediakan/mensupply peralatan laboratorium untuk sipil/pertambangan seperti Universal Testing Machine (100kN - 300kN) , kami juga menyediakan berbagai brand/merk internasional dari USA, Eropa dan China,produk internasional yang kami supply/tawarkan seperti : Cometech, Gilson, Humboldt, Drick Instrument dan lain - lain ; Kami juga menyediakan Jasa Perbaikan (SERVICE), Jasa Perawatan (Maintenace) dan support untuk KALIBRASI / AKSESSORIES SPAREPART jangan ragu untuk menghubungi kami marketing dan sales kami siap membantu menjawab segala kebutuhan anda.
