DIGITAL CONCRETE TEST HAMMER HT-225D / HT-75D / HT-20D

Harga : Rp 0.00 Rp 0.00

Brand : China,Matest,James Instrument

Stok : In Stock

Description
Review Product

DIGITAL CONCRETE TEST HAMMER HT-225D / HT-75D / HT-20D

DIGITAL CONCRETE TEST HAMMER HT-225D / HT-75D / HT-20D

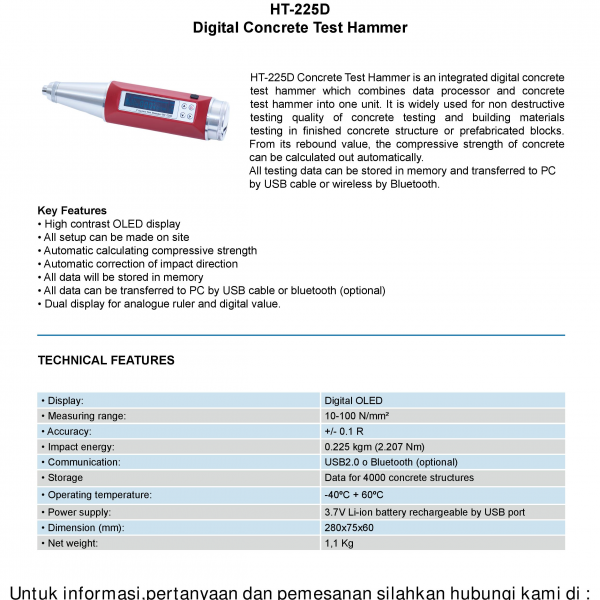

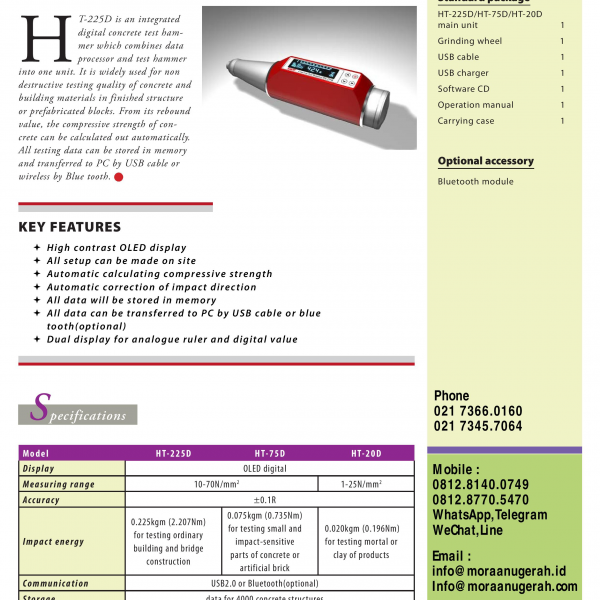

HT-225D Concrete Test Hammer is an integrated digital concrete test hammer which combines data processor and concrete test hammer into one unit. It is widely used for non destructive testing quality of concrete testing and building materials testing in finished concrete structure or prefabricated blocks.

From its rebound value, the compressive strength of concrete can be calculated out automatically.All testing data can be stored in memory and transferred to PC by USB cable or wireless by Bluetooth.

Key Features

High contrast OLED display
All setup can be made on site
Automatic calculating compressive strength
Automatic correction of impact direction
All data will be stored in memory
All data can be transferred to PC by USB cable or bluetooth (optional)
Dual display for analogue ruler and digital value.

ACCESSORIES

Concrete Test Hammer HT-225D
Abrasive grindstone
Data Managing Software
Battery charger

Specification

MODEL	HT-225D	HT-75D	HT-20D
DISPLAY	OLED
MEASURING RANGE	10–70 N/mm²		1-25 N/mm²
IMPACT ENERGY	0.225kgm (2.207Nm) for testing ordinary building and bridge construction	0.075kgm (0.735Nm) for testing small and impact-sensitive parts of concrete or artificial brick	0.020kgm (0.196Nm) for testing mortal or clay of products
COMUNICATION	USB2.0 or Bluetooth(optional)
STORAGE	data for 4000 concrete structures
OPERATING TEMPERATURE	-40°- 60 °C
POWER SUPPLY	3.7V Li-ion rechargeable battery charged via USB port
DIMMENSION (mm)	280 x 75 x 60
NET WEIGHT	1.1 Kg
