PILE INTEGRITY TESTER (GTJ P-800)

Harga : Rp 0.00 Rp 0.00

Brand : IWIN,T Instrument,Proceq,Hilti

Stok : In Stock

Description
Review Product

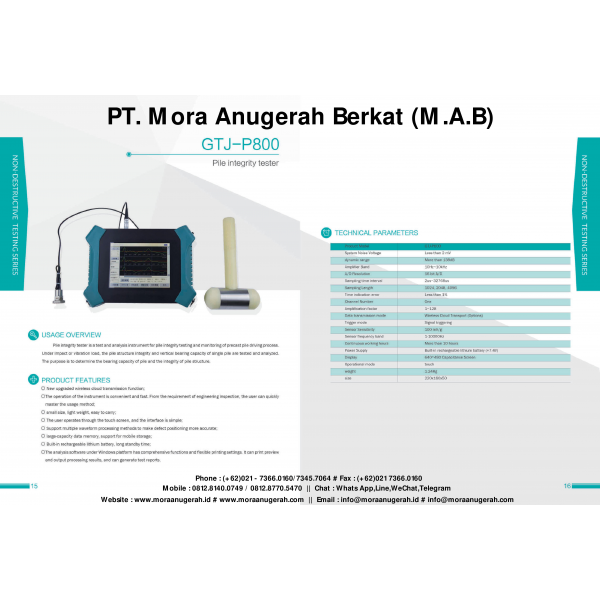

PILE INTEGRITY TESTER (GTJ P-800)

Product Overview

Pile integrity tester is a test and analysis instrument for pile integrity testing and monitoring of precast pile driving process, under impact or vibration load, the pile structure integrity and vertical bearing capacity of single pile are tested and analyzed. The purpose is to determine the bearing capacity of pile and the integrity of pile structure.

PILE INTEGRITY TESTER (GTJ P-800)

Product Features

Ø New upgraded wireless cloud transmission function
Ø The operation of the instrument is convenient and fast,from the requirement of engineering inspection the user can quicklymaster the usage method
Ø Small Size, light weight, easy to carry
Ø The user operates through the touch screen, and the interface is simple
Ø Support multiple wavefrom prossesing methods to make defect positioning more accurate
Ø Large-capacity data memory,support for mobile storage
Ø Built in rechargeable lithium battery,long stanby time
Ø The analysis software under windows platform has comprehensive functions and flexible printing setting, it can preview and output processing results, and can generate test report

Specifications	Pile Integrity Tester (GTJ P-800)
Product Model	Less than 2 mV
Dynamic Range	More than 138 dB
Amplifier Band	10 Hz - 10 kHz
A/D Resolution	16 bit A/D
Sampling Time Interval	2us - 32768us
Sampling Length	1024, 2048, 4096
Time Indication Error	Less Than 1%
Channel Number	One
Amplification Factor	1 - 128
Data Transmission Mode	Wireless Cloud Transport (Options)
Trigger Mode	Signal Trigering
Sensor Sensivity	1 - 10000 Hz
Sensor Frequency Band	100 mV/g
Continuous Warking Hours	1 - 10000 Hz
Power Supply	More than 10 hours
Display	Built reachargeable lithium battery (+ 7.4V)
Operational Mode	640 x 480 Capacitive Screen
Weight	1.24 Kg
Size	220 x 160 x 50
