UNIVERSAL SAMPLE EXTRUDERS

Standard Method : EN 13286-2, 13286-47 | ASTM D698, D1587, D1883 | BS 598, 1377:4, 1924:2

UNIVERSAL SAMPLE EXTRUDERS

Code : S111

MOTORISED HYDRAULIC EXTRUDER

Used for a smooth and rapid extrusion of soil samples from tubes also of thin walls with minimum disturbance. The unit extrudes samples from Ø 35 up to 150 mm (external diameter 160 mm) with max. stroke of 900 mm.

The hydraulic piston is equipped of speed adjuster and can be stopped in any excursion’s position.

Max. load: 70 kN (7000 kg)

The extruded sample is held in place by a receiving table adjustable in height and easily lowered along side the machine to save space. Complete with adaptors (ring + tamper) to extrude samples having diameter 38.1 (11/2”), 83, 100 mm.

Power supply : 230V 1ph 50Hz 1300W

Dimensions (working position) : 2741 x 635 x 1200 mm

Weight : 160 kg approx.

UNIVERSAL EXTRUDER

Code : S114

Used to extrude samples having diameter 4”, 6”, 100 mm, 150 mm. It can therefore extrude CBR, Marshall and Proctor specimens. The extruder is actuated by a 50 kN hydraulic jack, having ram travel of 190 mm + 170 mm screw. Supplied complete with adaptors

Dimensions: Ø 300x500 mm

Weight: 32 kg approx.

Code : S110

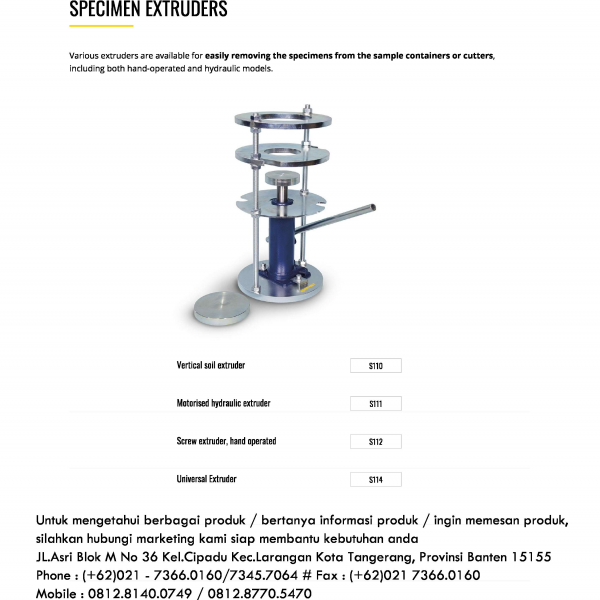

VERTICAL SOIL EXTRUDER, HAND OPERATED

The extruder is actuated by a 60kN hydraulic jack, ram travel 480 mm. It accepts standard U4 tubes and samples from 35 to 152 mm diameter.

Dimensions : 350 x 320 x 1150 mm

Weight : 50 kg

ACCESSORIES

S110-01 ADAPTOR for extruding 38, 100, 150 mm, 4”, 6” samples

S110-02 ADAPTOR for extruding 38 mm diameter samples only

S110-03 SAMPLE TUBE U100 (U4), Ø 106x457.2 mm

S110-04 TAMPER to extrude the sample from S110-03 tube

S112

SCREW EXTRUDER - HAND OPERATED

The unit extrudes samples from Ø 35 to 101.6 mm with max. stroke of 650 mm. Supplied complete with adaptors to extrude samples having diameter 38.1 (11/2”), 83, 100 mm, supporting bench, sample receiving table both adjustable in height and lowerable.

Dimensions : 1700 x 700 x 1200 mm

Weight : 90 kg approx.

UNIVERSAL SAMPLE EXTRUDERS

Untuk mengetahui lebih detail model/type dan spesifikasi dari Matest - Universal Sample Extruders silahkan click link/tautan yang ada di bawah ini :

Click Here Universal Sample Extruders
