BACHARACH InTech Combustion Analyzer
Harga : Rp 0.00 Rp 0.00
Brand : Bacharach
Stok : In Stock
BACHARACH InTech Combustion Analyzer
Handheld Combustion Analyzer for Residential Applications
BACHARACH InTech Combustion Analyzer

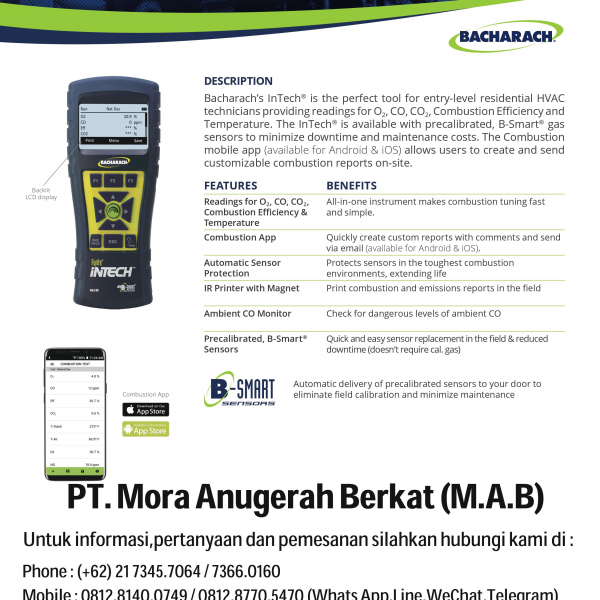

Click Here : InTech Combustion Analyzer Brochure
Bacharach’s InTech® is the perfect tool for entry-level residential HVAC technicians providing readings for O2, CO, CO2, Combustion Efficiency and Temperature. The InTech® is available with pre-calibrated gas sensors to minimize downtime and maintenance costs. The Combustion mobile app (available for Android & iOS) allows users to create and send customizable combustion reports on-site.
- All-in-one instrument makes combustion tuning fast and simple with readings for O2, CO, CO2, combustion efficiency, and temperature
- Combustion App allows users to quickly create custom reports with comments and send via email (available for Android & iOS)
- Automatic sensor protection helps technicians protect the analyzer in harsh environments, extending sensor life
- Ambient CO monitoring function allows technicians to check for dangerous CO levels
- Quick and easy sensor replacement in the field reduces downtime and doesn’t require calibration gas
Description
The InTech® combustion analyzer is the perfect tool for entry-level and residential technicians who need to ensure safe operating conditions and determine combustion efficiency. The InTech® features 6 fuels in the North American configuration to suit a wide variety of applications.
The InTech® includes sensors for O2 and CO, with an option for an external NOx filter. The CO sensor can be replaced in the field without down time using pre-calibrated sensors. The InTech® calculates values like efficiency, CO2 and CO air-free to help monitor combustion processes effectively and accurately.
Click Here : InTech Combustion Analyzer Brochure
Product Specifications
| Sensors: | Up to 2 |
| Measuring Range: | 0 to 20.9% 0 to 2000 ppm |
| Stack Temperature: | -4 to 1202 °F (-20 to 650 °C) |
| User Interface: | Monochrome LCD w/Backlight |
| Display Size: | 2.7 in. (69 mm) |
| Power: | 4 × Alkaline Batteries |
| Run Time: | 15 Hours (Alkaline Batteries) |
| Warm-Up Time: | 30 to 60 seconds |
| Digital Communications: | USB 2.0 (mini-B), IrDA |
| Ambient Temperature: | 23 to 113 °F (-5 to 45 °C) |
| Humidity: | 15 to 90% RH (non-condensing) |
| Altitude: | 1 ATM ± 10% |
| Product Dimensions (L×W×H): | 8" × 3.6" × 2.3" (20.3 × 9.1 × 5.8 cm) |
| Product Weight: | 1 lb. (0.45 kg) including batteries |
| Fuel Equations: | Natural gas, oil 2/6, kerosene, propane, butane, LPG, B5, KOKS, LEG, biofuel |
| Approvals: | CE, EN 50379-1 , EN 50379-3 |
| Internal Memory: | 10 Records |
| Warranty: | 2 Years (including sensors) |
| Printer: | IrDA + Bluetooth Printer (Optional) |
| Country of Origin: | United States |
Part Numbers
| Description | North American Part Number | Siegert (European) Part Number |
| Fyrite® InTech® O2 only with soft carrying case | 0024-8510 | — |
| Fyrite® InTech® with soft carrying case | 0024-8511 | 0024-8513 |
| Fyrite® InTech® with protective rubber boot, spare filters (qty. 3), reporting kit and hard carrying case | 0024-8512 | 0024-8514 |
| Fyrite® InTech® with protective rubber boot and hard carrying case | 0024-8523 | — |
Accessories and Parts
Bacharach’s Combustion app, the companion app to Bacharach combustion analyzers, provides technicians the ability to generate and send customizable combustion reports from their smartphone / tablet.
Features of the Combustion App:
- QR Code Scanner (Intech & Insight Plus only): Scan a QR code generated on the analyzer display screen for immediate creation and transmission of combustion reports
- Wireless Bluetooth Connectivity (PCA 400 only): View real-time combustion data from your device, simultaneously save data to the mobile app and to the analyzer memory, and remotely start / stop the analyzer sampling pump
- Set up customer profiles with facility and equipment information
- Save and view records of test data
- Generate reports in PDF, CSV, or XML format using saved records
- Send or share a report file as an email attachment or to a cloud storage service
- Include up to 10 data records in a single report
- Insert comments for each data record in a report
Click Here : InTech Combustion Analyzer Brochure
| Description | Part Number |
| Sensor Exchange Program (2 years, 1 Sensor every 12 months) CO sensor (0 – 2,000 ppm) |
0024-3050 |
| Sensor Exchange Program (2 years, 1 Sensor every 6 months) CO sensor (0 – 2,000 ppm) |
0024-3051 |
| Sensor Exchange Program (3 years, 1 Sensor every 9 months) CO sensor (0 – 2,000 ppm) |
0024-3074 |
| CO sensor (0 – 2,000 ppm) uncalibrated | 0024-7265 |
| CO sensor (0 – 2,000 ppm) pre-calibrated | 0024-1467 |
| NOx filter kit | 0024-1505 |
| Calibration Kit (includes variable-flow regulator, fittings and tubing) | 0024-7059 |
| O2 uncalibrated sensor (2 year) | 0024-0788 |
| IRDA Printer w/ 4x AA batteries | 0024-1400 |
| Reporting kit (includes IrDA printer, USB cable, Fyrite® User Software and 4x AA batteries) |
0024-1492 |
| Flue plugs, 5/16 in. metal (package of 50) | 0024-8557 |
| Printer paper (5 rolls) | 0024-1310 |
| Probe filters (package of 3) | 0007-1644 |
| CO appliance test kit | 0024-8555 |
SUPPORTED GASES:
- Carbon Dioxide
- Carbon Monoxide
- Oxygen
Click Here : InTech Combustion Analyzer Brochure
BACHARACH InTech Combustion Analyzer
