Battery Thermal Abuse Testing Machine
Harga : Rp 0.00 Rp 0.00
Brand : AMADE TECH,YASUDA SEIKI,DRICK
Stok : In Stock
Battery Thermal Abuse Testing Machine

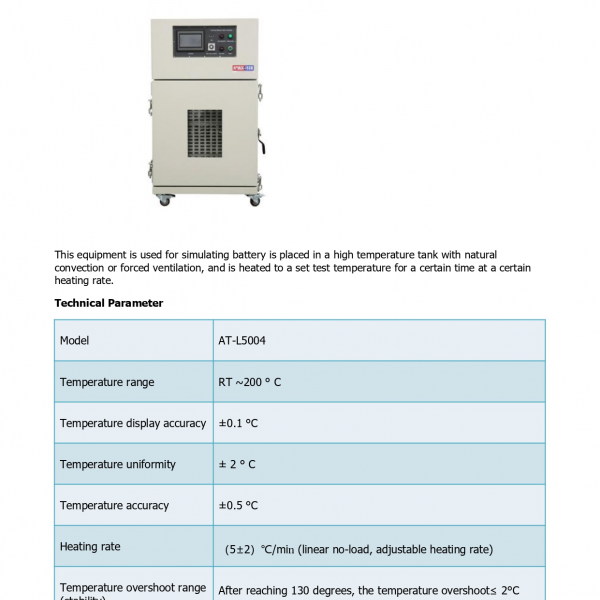

This equipment is used for simulating battery is placed in a high temperature tank with natural convection or forced ventilation, and is heated to a set test temperature for a certain time at a certain heating rate.
Battery Thermal Abuse Testing Machine
CATALOG : BATTERY THERMAL TESTING MACHINE I
CATALOG : BATTERY THERMAL TESTING MACHINE II
Technical Parameter :
| Model | AT-L5004 | ||
| Temperature range | RT ~200 °C | ||
| Temperature display accuracy | ±0.1 °C | ||
| Temperature uniformity | ± 2 ° C | ||
| Temperature accuracy | ±0.5 °C | ||
Heating rate |
（5±2）℃/min (linear no-load, adjustable heating rate) |
||
| Temperature overshoot range (stability) | After reaching 130 degrees, the temperature overshoot≤ 2°C | ||
| Inner box size | 500*600*500 mm (width * height * depth) | ||

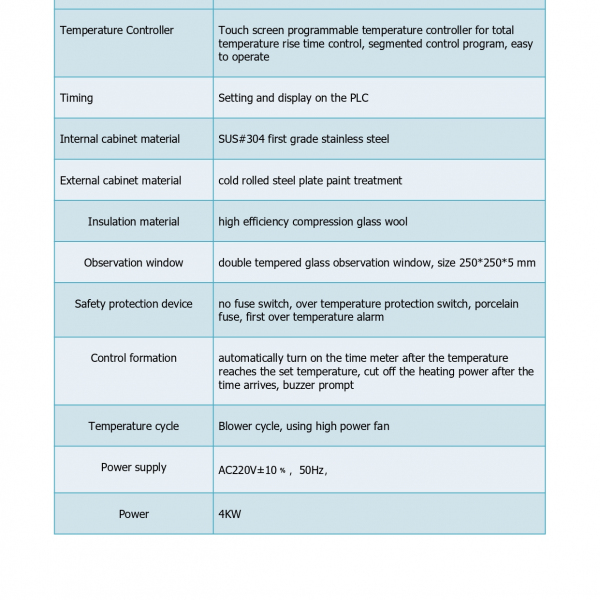

| Temperature Controller | Touch screen programmable temperature controller for total | ||
| temperature rise time control, segmented control program, | |||
| easy to operate | |||
| Timing | Setting and display on the PLC | ||
| Internal cabinet material | SUS#304 first grade stainless steel | ||
| External cabinet material | cold rolled steel plate paint treatment | ||
| Insulation material | high efficiency compression glass wool | ||
| Observation window | double tempered glass observation window, size 250*25*5mm | ||
| Safety protection device | no fuse switch, over temperature protection switch, porcelain | ||
| fuse, first over temperature alarm | |||
| Control formation | automatically turn on the time meter after the temperature | ||
| reaches the set temperature, cut off the heating power after the | |||
| time arrives, buzzer prompt | |||
| Temperature cycle | Blower cycle, using high power fan | ||
| Power supply | AC220V±10﹪，50Hz， | ||
| Power | 4KW | ||
Battery Thermal Abuse Testing Machine
Untuk mengetahui lebih detail model/type dan spesifikasi dari Battery Thermal Abuse Testing Machine silahkan click link/tautan yang ada di bawah ini :
CATALOG : BATTERY THERMAL TESTING MACHINE I
CATALOG : BATTERY THERMAL TESTING MACHINE II
