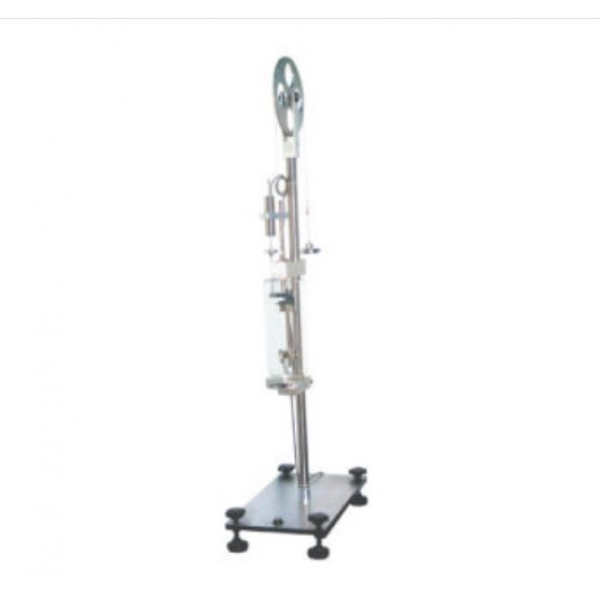

FENCHEL EXPANSION AND CONTRACTION TESTER (AUTOMATIC)

Brand : Yasuda Seiki,Testex,Cometech,Drick

Stok : In Stock

Standard Method : J.TAPPI-No.27, ISO-5635

The stretching properties are measured via digital encoder, automating the test procedure.

FENCHEL EXPANSION AND CONTRACTION TESTER (AUTOMATIC)

Spesifikasi :

Model	No.309-AUTO FENCHEL EXPANSION AND CONTRACTION TESTER (AUTOMATIC)
Specimen	W15 mm, L150 mm
Chuck Distance	Max. 100 mm (Pitch 5 mm)
Weight	5 g, 10 g, 20 g, 50 g: 1 pc each
Displacement Measurement	Digital Encoder
Temperature Measurement	Digital Temperature Controller
Elevation Method	Air Cylinder
Software	Windows Compatible
Accessory	Plastic Beaker
Power Source	AC 100 V, 1-Phase, 3 A, 50/60 Hz
Air Source	0.5 MPa or More
Dimensions/ Weight (Approx.)	Tester Body: W400 × D400 × H1,400 mm, 20 kg Control Box: W310 × D300 × H250 mm, 8.5 kg
