PENDULUM SKID TESTER

ASTM D3319, E303; AASHTO T 278, T 279; BS 812-114;

BS EN 1097-8, 13036

HM-602W

The Pendulum Skid Tester measures skid resistance when a rubber slider on a 20in (508mm) pendulum arm contacts a test surface. A drag pointer on a 0—150 scale measures friction. The unit quantifies the potential of automotive tire skidding and also evaluates skid resistance of surfaces and polishing tendencies of aggregates. A supplementary 0—10 scale is provided for work using smaller sliders. Adjustments to the arm position and base maintain a true circular path when operated on sloping road surfaces. Sliders are made with a graded rubber strip bonded to an aluminum backing plate. Gilson supplies large or small rubber sliders either mounted to aluminum plates or as unmounted replacement pads. Order 3in (76mm) wide Large Sliders for testing road surfaces or 1.25in (32mm) wide Small Sliders for testing polishing wheel specimens. The Tester includes a setting gauge, three wrenches, water bottle, instrument case, traceable calibration certificate and instructions. Large or Small Sliders are ordered separately. When evaluating specimens from Accelerated Polishing Machines, order Laboratory Base Plate HMA-204W and HMA-207 Small Sliders separately. Base Plate is 25x19x2in (635x480x50mm), LxWxH, including a specimen mounting block. Order HMA-208 6x24in (152x610mm) No.60 grade silicon carbide Slider Conditioning Cloth in packs of ten to condition sliders per ASTM E303. Molds to form Accelerated Polishing Machine specimens are also available. Product Dimensions: 28.3x28.7x8.7in (720x730x220), WxDxH

PENDULUM SKID TESTER

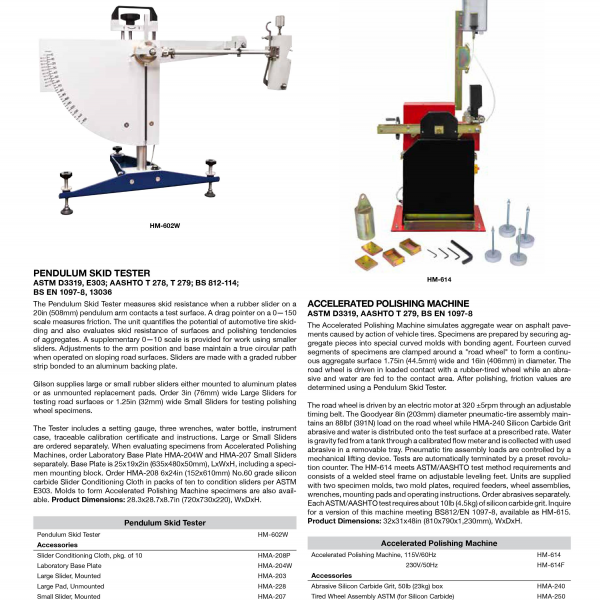

Click Here : Pendulum Skid Tester Catalog

Accessories :

• Slider Conditioning Cloth, pkg. of 10 HMA-208P
• Laboratory Base Plate HMA-204W
• Large Slider, Mounted HMA-203
• Large Pad, Unmounted HMA-228
• Small Slider, Mounted HMA-207
• Small Pad, Unmounted HMA-229
• Accelerated Polishing Specimen Mold HMA-258
• Mold Plate HMA-259

Untuk mengetahui lebih detail model/type dan spesifikasi dari Pendulum Skid Tester silahkan click link/tautan yang ada di bawah ini :

PENDULUM SKID TESTER

Click Here : Pendulum Skid Tester Catalog
