SIEVE ANALYSIS / STAINLESS STEEL OR BRASS ROUND SIEVE

Harga : Rp 0.00 Rp 0.00

Brand : Lokal,Matest,Gilson,Humboldt,Retsch,Endecotts

Stok : In Stock

Description
Review Product

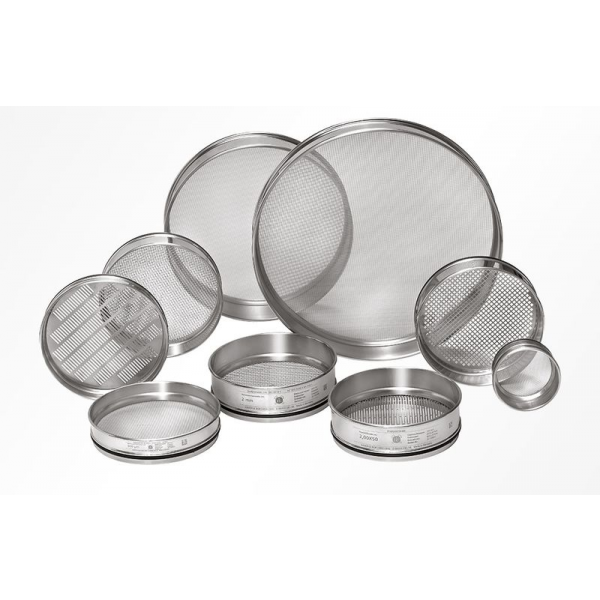

SIEVE ANALYSIS / STAINLESS STEEL OR BRASS ROUND SIEVE

For determining grain size distribution of soil particles or sand / gravel. Perforated plate test sieves are manufactured from Stainless Steel or Brass plate, 8" diameter. The unit offered are supplied in a range of size from 101.6 mm (4") to 0.075 mm mesh opening.

Dimension (l x w x h) : 22 x 22 x 6.5 cm.

Gross weight : 0.75 kg / pcs

STAINLESS STEEL OR BRASS ROUND SIEVE 8" (200 mm) DIAMETER

All Size : Sieve 4" Mesh 101.6 mm opening - Sieve # 200 Mesh 0.075 mm opening

For wet sieving of soil, cement and fine aggregates

Dimension ( l x w x h) : 22 x 22 X 20 cm.

Gross weight : 1.5 kg

BAM36 -1272-2 Wet Washing Sieve # 200, 8" dia., 4" depth.

BAM36 -1272-3 Wet Washing Sieve # 200, 8" dia., 8" depth.

SIEVE ANALYSIS / STAINLESS STEEL OR BRASS ROUND SIEVE

UKURAN SIEVE / SIEVE SIZE
UKURAN SIEVE / SIEVE SIZE
NO	MESH	APPERTURE	NO	MESH	APPERTURE
NO	NUMBER	APPERTURE	NO	NUMBER	APPERTURE
1	4.25 Inch	106 mm	24	No 12	1.70 mm
2	4.00 Inch	100 mm	25	No 14	1.40 mm
3	3 ½ Inch	90 mm	26	No 16	1.18 mm
4	3 Inch	75 mm	27	No 18	1.00 mm
5	2 ½ Inch	63 mm	28	No 20	850 μm
6	2 Inch	50 mm	29	No 25	710 μm
7	1 3/4 Inch	45 mm	30	No 35	500 μm
8	1 ½ Inch	37.5 mm	31	No 40	425 μm
9	1 1/4 Inch	31.5 mm	32	No 45	355 μm
10	1 Inch	25 mm	33	No 50	300 μm
11	7/8 Inch	24.4 mm	34	No 60	250 μm
12	3/4 Inch	19 mm	35	No 70	212 μm
13	5/8 Inch	16 mm	36	No 80	180 μm
14	1/2 Inch	12.5 mm	37	No 100	150 μm
15	3/8 Inch	9.5 mm	38	No 120	125 μm
16	5/16 Inch	8.0 mm	39	No 140	106 μm
17	1/4 Inch	6.3 mm	40	No 170	90 μm
18	No 4	4.75 mm	41	No 200	75 μm
19	No 5	4 mm	42	No 230	63 μm
20	No 6	3.35 mm	43	No 250	53 μm
21	No 7	2.80 mm	44	No 325	45 μm
22	No 8	2.36 mm	45	No 400	38 μm
23	No 10	2.00 mm	46	Pan and Cover
