TABER TYPE ABRASION TESTER
Harga : Rp 0.00
Brand : Yasuda Seiki,Testex,Cometech,Drick
Stok : In Stock
TABER TYPE ABRASION TESTER
A Taber Type Abrasion Tester, often simply referred to as a Taber Abraser or Taber Abrader, is a widely recognized and standardized instrument used to evaluate the abrasion resistance of a broad range of materials. It simulates real-world wear conditions to determine how well a material can withstand friction, rubbing, or scraping.
TABER TYPE ABRASION TESTER
Applications :
The Taber Type Abrasion Tester is a versatile tool used across numerous industries for quality control, research and development, and material evaluation. Its applications include:
Coatings and Paints : Evaluating the scratch, scuff, and wear resistance of floor coatings, automotive paints, industrial finishes, varnishes, and electroplated surfaces.
Plastics and Rubber : Determining the scratch and wear resistance of plastic films, rubber parts, packaging materials, tires, seals, and other plastic components (e.g., in consumer electronics, medical devices).
Textiles and Leather : Assessing the wear resistance of fabrics (upholstery, clothing, industrial textiles), carpets, and leather products (e.g., car seat fabrics, footwear, furniture fabrics).
Paper and Printing : Evaluating the wear resistance of printed materials like labels, wrapping paper, and book covers to prevent ink or coating degradation.
Electronic Equipment : Testing the scratch resistance of surfaces like mobile phone screens and keyboards.
Building Materials and Flooring : Evaluating the durability of tiles, wood floors, and other flooring materials, as well as concrete and asphalt.
Automotive Industry : Testing the durability of interior materials such as dashboards and seat covers.
General Materials : Metals, ceramics, laminates, safety glazing, and many other flat materials.
TABER TYPE ABRASION TESTER
Standards :
The Taber Abrasion Test is referenced in numerous international standards, ensuring consistent and comparable results. Some common standards include:
ASTM D4060: Standard Test Method for Abrasion Resistance of Organic Coatings by the Taber Abraser.
ASTM D1044: Standard Test Method for Resistance of Transparent Plastics to Surface Abrasion.
ASTM D3884: Standard Test Method for Abrasion Resistance of Textile Fabrics (Rotary Platform, Double-Head Method).
ISO 5470: Rubber - or plastics-coated fabrics - Determination of abrasion resistance.
ISO 7784: Paints and varnishes - Determination of resistance to abrasion.
DIN 53516: Determination of abrasion resistance of rubber and elastomers.
Numerous other industry-specific and national standards (e.g., BS, MIL, SAE, Ford Laboratory Test Methods).

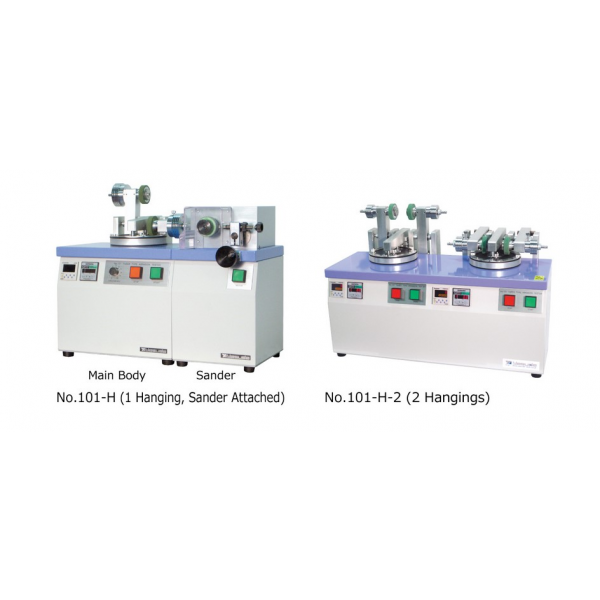

- No.101-H TABER TYPE ABRASION TESTER
- Standard Method : JIS A1453, (K5400) , K5600-5-8/9, K5665 , K6264-2, K6404-4, K6902, K7204, (L1018), L1085, L1096, ASTM D1044, TAPPI-T476, JAS, (JASO-M403), ISO 4649, 5470-1, 7784-1/2, 9352
- This tester is used to evaluate the abrading endurance of flat surface materials when they are abraded with an abrading wheel.
- The operator is to place the abrading wheel to the rotating test specimen at a prescript load and abrade the test specimen.
- After the test is finished, the operator is to measure the abraded mass, volume, thickness, and the optical difference of the test specimen.
- This tester is widely used in testing plastic, rubber, decorative sheet, leather, paper, and paint surface.

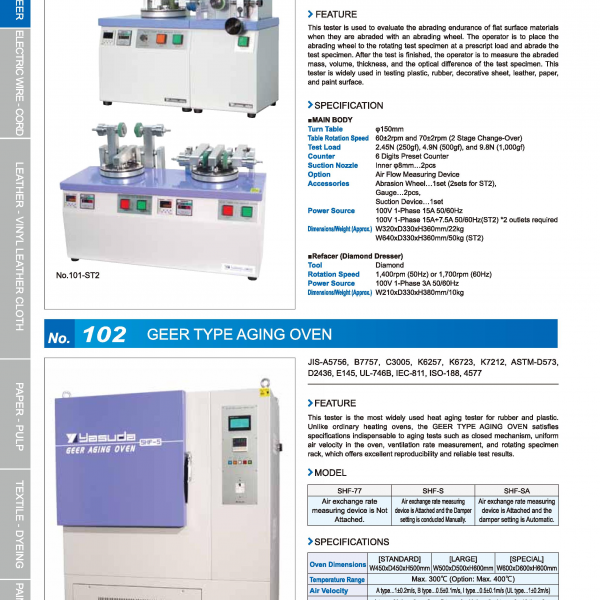

- Click Here : Yasuda Seiki No.101-H Taber Type Abrasion Tester Brochure
| TABER TYPE ABRASION TESTER | |
| Model | No.101-H TABER TYPE ABRASION TESTER |
| Specification | |
| Turn Table | φ150 mm |
| Table Rotation Speed | 60 ± 2 rpm、70 ± 2 rpm、72 ± 2 rpm |
| Weight Load | 2.45N (250 gf) / 4.9N (500 gf) / 9.8N (1,000 gf） |
| Counter | 6 Digits Preset Counter |
| Suction Nozzle | Inner φ8 mm: 2 pcs |
| Option | Inlet Pressure Gauge,Safety Cover |
| Accessories | Abrasion Wheel: 1 set (2 sets for No.101-H-2), Thickness Guage: 2 pcs, Weight (4.9N, 9.8N) 2 pcs each, Suction Device (Vacuum Cleaner) : 1 1 set Power Plug Adaptor: 1 pc |
| Power Source | 1 Hanging (No.101-H-1) : AC 100 V, 1-Phase, 15 A, 50/60 Hz 2 Hangings (No.101-H-2) : AC 100 V, 1-Phase, 15 A × 2, 50/60 Hz * 2 outlets required |
| Dimensions / Weight (Approx.) |
1 Hanging (No.101-H-1) : W350 × D350 × H450 mm / 25 kg 2 Hangings (No.101-H-2) : W700 × D350 × H510 mm/ 45 kg |
| No.101-K WHEEL REFACER (FOR TABER ABRASION WHEELS) | |
| Tool | Diamond |
| Rotation Speed | Approx. 1,400 rpm (50 Hz) Approx. 1,700 rpm (60 Hz) |
| Power Source | AC 100 V, 1-Phase, 3 A, 50/60 Hz |
| Dimensions / Weight (Approx.) | Approx. W210 × D350 × H390 mm/ 12 kg |
==================================================
TABER TYPE ABRASION TESTER
==================================================
- This is a tester with Wind Meter attached to No.101-H TABER TYPE ABRASION TESTER.
- It sucks the abraded scrap during the test.
- Not only that, it measures the air flow while sucking so it enables to have more precise test result.
- Click Here : Yasuda Seiki No.101-HS Taber Type Abrasion Tester Brochure
| TABER TYPE ABRASION TESTER | |
Model |
No.101-HS TABER TYPE ABRASION TESTER (WITH WIND METER) |
| No.101-HS TABER TYPE ABRASION TESTER (WITH VACUUM FLOW METER) | |
| Specification | |
| Turn Table | φ150 mm |
| Table Rotation Speed |
60 ± 2 rpm, 70 ± 2 rpm, 72 ± 2 rpm |
| Weight Load | 2.45N (250 gf) / 4.9N (500 gf) / 9.8N (1,000 gf) |
| Counter | 6 Digits Preset Counter |
| Suction Nozzle | Inner φ 8 mm : 2 pcs |
| Option | Safety Cover |
| Accessories | Abrasion Wheel : 1 set (2 sets for No.101-H-2), Thickness Guage : 2 pcs, Weight(4.9N,9.8N) : 2 pcs each, Suction Device (Vacuum Cleaner) : 1 set Power Plug Adaptor : 1 pc |
| Power Source | AC 100 V, 1-Phase, 15 A, 50/60 Hz |
| Dimensions / Weight (Approx.) | W400 × D400 × H385 mm/ 25 kg |
