WET FILM THICKNESS GAUGE
Harga : Rp 123.00
Brand : Yasuda Seiki,Testex,Cometech,Drick
Stok : In Stock
WET FILM THICKNESS GAUGE
A Wet Film Thickness Gauge is a tool used to measure the thickness of wet coatings (like paint, varnish, or adhesives) before they dry or cure. Measuring wet film thickness (WFT) helps ensure the correct dry film thickness (DFT) will be achieved, which is critical for the performance and durability of the coating.
WET FILM THICKNESS GAUGE
A Wet Film Thickness (WFT) Gauge, often called a wet film comb, notched gauge, or mil gauge, is a tool used to measure the thickness of a freshly applied liquid coating (like paint, varnish, resin, or adhesive) before it dries or cures.
Types of WFT Gauges While the comb or notched gauge is the most common, other types exist:
Notched/Comb Gauges : Most popular, inexpensive, and easy to use. Available in stainless steel (reusable) or plastic (often disposable). They are suitable for a wide range of coatings.
Wet Film Wheels (Rolling Gauges) : These gauges consist of two outer eccentric wheels and a center measuring wheel. They are rolled over the wet film. The thickness is determined by the point at which the center wheel touches the wet film. They are generally more precise than comb gauges and are also used on moving substrates, such as in coil coating.
Pfund and Interchemical Gauges : These use a microscope to measure the diameter of an impression left in the wet film by a spherical or flat-bottomed device, providing high accuracy on smooth surfaces.
A Wet Film Thickness (WFT) Gauge, often called a wet film comb, notched gauge, or mil gauge, is a tool used to measure the thickness of a freshly applied liquid coating (like paint, varnish, resin, or adhesive) before it dries or cures.
WET FILM THICKNESS GAUGE
Measuring the wet film thickness is crucial for :
Quality Control: It helps applicators immediately ensure that the coating is applied according to the manufacturer's specifications.
Predicting Dry Film Thickness (DFT): By knowing the coating's volume solids percentage, the final dry film thickness can be calculated using the formula:
Cost and Efficiency Control: Applying the correct thickness avoids waste from over-application or inadequate protection from under-application, which could lead to defects like cracking or premature corrosion.
WET FILM THICKNESS GAUGE
Method / Standard : JIS-(K5400), K5600-1-7, ISO-2808

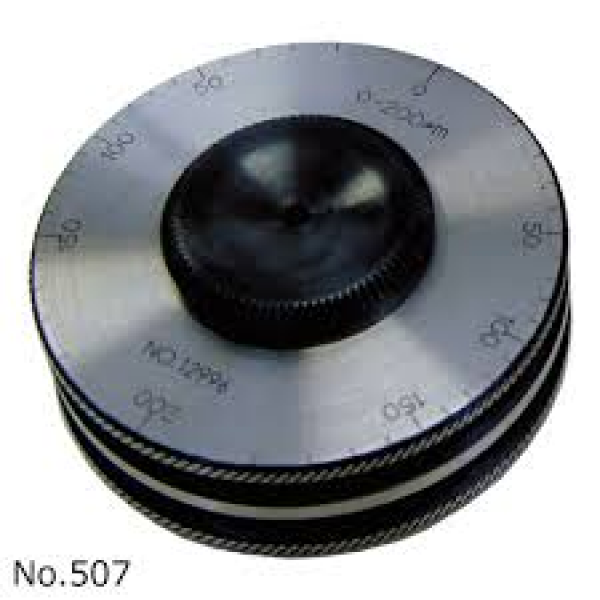

The WET FILM THICKNESS GAUGE is to measure the ink's wet film thickness. The gauge is made by 3 rings. The center ring is smaller than the outer 2 rings and is eccentric so that when it is rolled on a wet paint, the operator can read the scale when the center ring touches the painted surface.
| WET FILM THICKNESS GAUGE | |
| Specification | |
| Scale | 0 to 25 µm, 0 to 50 µm, 0 to 100 µm, and 0 to 200 µm (Scale 20 Divisions) |
| Dimensions | φ 60 × 25 mm |
| Mass | 0.3 kg*Please contact us for custom models. |
WET FILM THICKNESS GAUGE
