Brand : Qualitest,Yasuda Seiki,Toyoseiki,Drick
Stok : In Stock
Specification | |

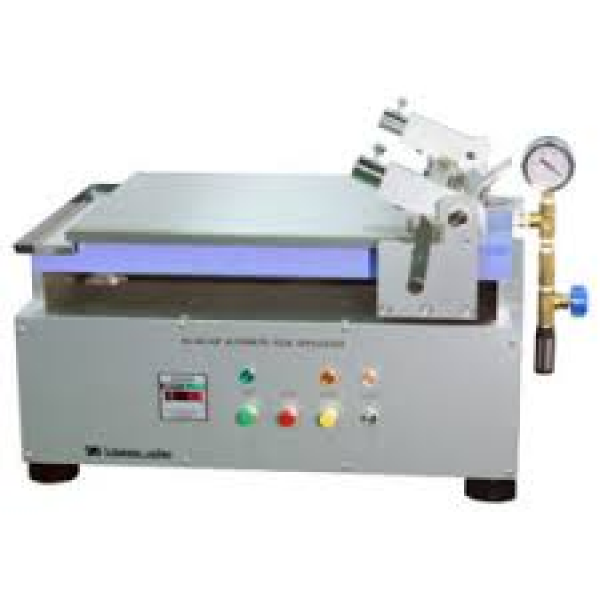

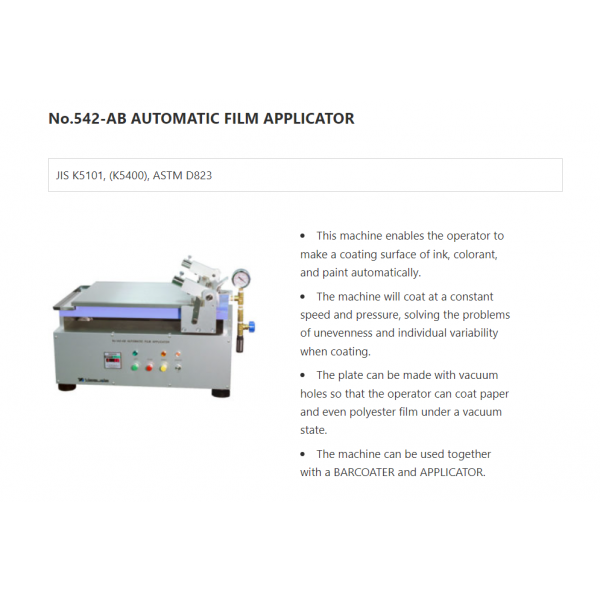

Model | No.542-AB AUTOMATIC FILM APPLICATOR |
Maximum Test Panel Size |
A4 size: W295 × L390 mm ( Material SUS-303) A3 size: W390 × L495 mm ( Material SUS-303) |
Suction Area | A4 size: W200 × L285 mm, φ1 mm: 110 pcs A3 size: W300 × L420 mm, φ1 mm: 210 pcs |
Temperature Range | ― |
Coating Speed | 20 to 300 mm/s (60 Hz), 20 to 260 mm/s (50 Hz), Length Setting Sensor Attached |
Accessories | Weights for Barcoater (3 kinds), Jig for Applicator, Scraper, Spatula |
Option | Vacuum Pump, Barcoater, Applicator |
Power Source | AC 100 V, 1-Phase, 5 A, 50/60 Hz |
Dimensions / Weight (Approx.) |
A4 size:W570 × D430 × H320 mm, 45 kg A3 size:W630 × D500 × H420 mm, 65 kg |
==================================================
YASUDA SEIKI - AUTOMATIC FILM APPLICATOR
==================================================
Specification | |
Model |

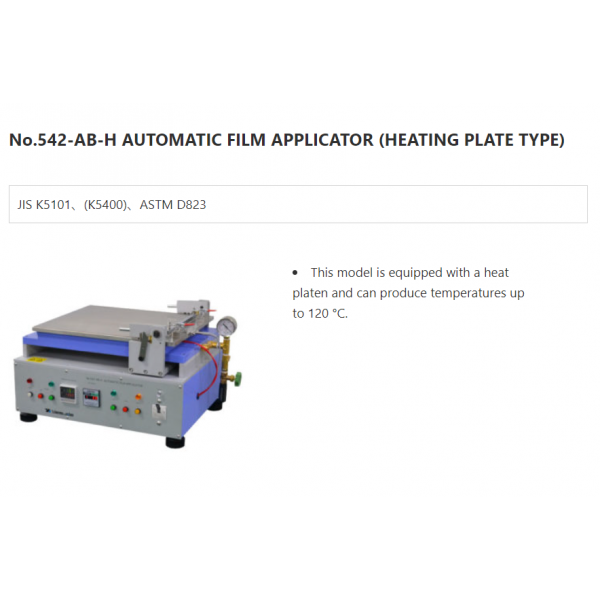

No.542-AB-H AUTOMATIC FILM APPLICATOR |
(HEATING PLATE TYPE) | |
Surface |
A4 size: W298 × L392 mm (Effective Range, Material SUS-303) |
A3 size: W398 × L496 mm (Effective Range, Material SUS-303) | |
Suction |
A4 size: W200 × L285 mm, φ1 mm: 110 pcs |
A3 size: W300 × L420 mm, φ1 mm: 210 pcs | |
Temperature |
Max. 120 °C |
*Only a single temperature can be selected. | |
Coating |
20 to 300 mm/s (60 Hz), 20 to 260 mm/s (50 Hz), |
Length Setting Sensor Attached | |
Accessories | Weights for Barcoater (3 kinds), Jig for Applicator, Scraper, Spatula |
Option | Vacuum Pump, Barcoater, Applicator |
Power Source | AC 100 V, 1-Phase, 10 to 15 A, 50/60 Hz |
Dimensions/ |
A4 size:W500 × D410 × H410 mm, 50 kg |
A3 size:W620 × D510 × H410 mm, 65 kg | |
Standard Method | JIS-K5101, (K5400), ASTM-D823 |
==================================================
YASUDA SEIKI - AUTOMATIC FILM APPLICATOR
==================================================
Specification | |

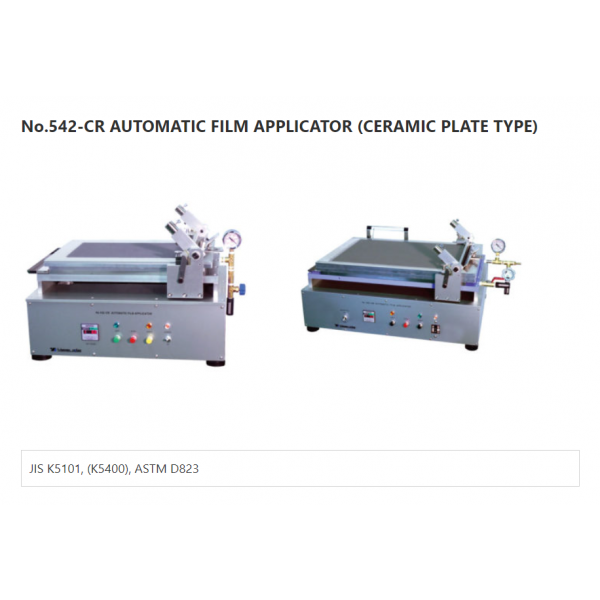

Model | No.542-CR AUTOMATIC FILM APPLICATOR |
(CERAMIC PLATE TYPE) | |
Surface | A4 size: W270 × L360 mm (Effective Range, Material : Porous Ceramics) |
A3 size: W355 × L516 mm (Material : Porous Ceramics) | |
Coating Area | A4 size: W200 × L300 mm |
A3 size: W300 × L450 mm | |
Length Setting Sensor Attached (can make 300 to 450 mm) | |
Coating Speed | 20 to 300 mm/s (60 Hz), 20 to 260 mm/s (50 Hz) |
Safety Device (Option) | Slip type Torque Limiter (70 N) |
Accessories | Weights for Barcoater (3 kinds), Jig for Applicator, Scraper, Spatula |
Option | Vacuum Pump, Barcoater, Applicator |
Power Source | AC 100 V, 1-Phase, 10 to 15 A, 50/60 Hz |
Dimensions/ | A4 size: W570 × D490 × H430 mm, 50 kg |
A3 size: W720 × D590 × H430 mm, 65 kg | |
Standard Method | JIS-K5101, (K5400), ASTM-D823 |
Berikut ini adalah daftar alat uji (testing equipment) untuk berbagai pengujian material testing YASUDA SEIKI sebagai berikut :
YASUDA SEIKI | ||
Material : Plastic, Rubber, Tape Film and Polymer | ||
Page | Nama Alat Testing | Code No |
1 | TABER TYPE ABRASION TESTER | 101 |
GEER TYPE AGING OVEN | 102 | |
2 | WILLIAM TYPE PLASTOMETER | 105 |
AUTOMATIC WILLIAM TYPE PLASTOMETER | 105 AUTO | |
SCHOPPER TYPE SAMPLE CUTTER | 115 | |
3 | OLSEN TYPE STIFFNESS TESTER FOR HEAVY LOAD | 118 |
DIGITAL OLSEN TYPE STIFFNESS TESTER FOR HEAVY LOAD | 118 D | |
DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER | 119 | |
DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER WITH LOW TEMP. OVEN |
119 L | |
4 | DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER WITH LOW TEMP. OVEN (WITH A PICTURE BREAK DETECTION FUNCTION) | 119- LVR |
5 | MELT FLOW INDEX TESTER | 120-FWP |
FULLY AUTOMATIC MELT FLOW INDEX TESTER | 120 LABOT-MI | |
AUTOMATIC MELT FLOW INDEX TESTER | 120 SAS-2000 | |
6 | BRITTLENESS TEMPERATURE TESTER | 121 |
R BRITTLENESS TEMPERATURE TESTER(WITH REFRIGERATING MACHINE) | 121 | |
RA BRITTLENESS TEMPERATURE TESTER (ROTARY HOLDER TYPE) | 121 | |
7 | FULLY AUTOMATIC BRITTLENESS TEMPERATURE TESTER | 121 AUTO |
TEST TUBE AGING TESTER | 122 | |
SCHOPPER TYPE THICKNESS GAUGE | 128/129 | |
8 | AUTOMATIC CAPILLARY RHEOMETER FOR LIGHT LOAD | 140-SAS-2002 |
AUTOMATIC CAPILLARY RHEOMETER FOR HEAVY LOAD | 140-SAS-2005 | |
9 | CREEP TESTER FOR LIGHT LOAD | 145-A |
CREEP TESTER FOR HEAVY LOAD | 145-B | |
MIXED CREEP TESTER(STRESS RELAXATION TESTER) | 145-C | |
10 | RETENTIVITY TESTER | 145-D |
TR TESTER | 145-L | |
SERVOMOTOR TYPE CREEP TESTER | 145-SVS | |
11 | GEHMAN STIFFNESS TESTER | 145-G |
FULLY AUTOMATIC HEAT DISTORTION TESTER | 148-HDA | |
HEAT DISTORTION TESTER | 148-HD-PC | |
12 | HIGH TEMPERATURE HEAT DISTORTION TESTER | 148-HD-500 |
STRESS-CRACKING TESTER | 149 | |
LAMBOURN ABRASION TESTER | 150 | |
13 | DIN ABRASION TESTER | 151 |
DIN ABRASION TESTER WITH OVEN | 151-OV | |
14 | GEL TIME TESTER | 153 |
GEL TIME TESTER(CONTINUOUS RECORD TYPE) | 153 | |
15 | MARON MECHANICAL STABILITY TESTER | 156 |
AUTOMATIC MARON MECHANICAL STABILITY TESTER | 156-AUTO | |
FLOOR MATERIAL FATIGUE AND ABRASION TESTER BY CASTER | 159 | |
16 | SLIP TESTER | 162 |
SLIP TESTER(HORIZONTAL METHOD) | 162-FS | |
5 HANGINGS SLIP TESTER | 162-S5 | |
17 | O-Y PULL SLIP TESTER | 162-OY |
CLASH-BERG TORSION FLEXIBILITY TESTER | 170 | |
AUTOMATIC CLASH-BERG TORSION FLEXIBILITY TESTER | 170-AUTO | |
COMPRESSION SET TESTER | 171 | |
18 | FILM IMPACT TESTER | 181 |
FILM IMPACT TESTER WITH LOW TEMP. OVEN | 181-L | |
FALLING BALL IMPACT TESTER | 183 | |
19 | BALL TACK TESTER | 183-BT |
FALLING DART IMPACT TESTER | 183-S | |
MCBURNEY INDENTATION TESTER | 184-A | |
RESIDUAL INDENTATION TESTER | 184-B | |
20 | OZONE AGING TESTER | 187 |
PLASTIC SAMPLE CUTTING MACHINE | 189-PAL | |
AUTOMATIC SAMPLE FORMING MACHINE | 189-PFA | |
21 | NOTCHING MACHINE | 189-PN |
AUTOMATIC NOTCHING MACHINE | 189-PNA/PNCA | |
TEST MIXING ROLL | 191-TM/WM | |
22 | ELECTRIC HEATING SYSTEM TEST PRESS | 196 |
LUPKE TYPE REBOUND RESILIENCE TESTER | 200 | |
23 | YSS HEAT SEALER | 212 |
JIS HEAT SEALER | 213 | |
OXYGEN INDEX FLAMMABILITY TESTER | 214 | |
24 | ELECTRIC HEATING SYSTEM MINI TEST PRESS | 219 |
DART IMPACT TESTER | 220 | |
PLASTIC FLAMMABILITY TESTER | 252-UL-94 | |
25 | UNIVERSAL IMPACT TESTER | 258 |
DIGITAL IMPACT TESTER | 258-D | |
IMPACT TESTER WITH LOW TEMP. OVEN | 258-L | |
26 | FULLY AUTOMATIC IMPACT TESTER | 258-ZA |
FOAM RUBBER REPEATED COMPRESSION TESTER | 260 | |
27 | ROSS FLEXING TESTER | 270 |
ROSS FLEXING TESTER WITH LOW TEMP. OVEN | 270-LFR | |
28 | HEAT SEAL TESTER | 276 |
PLASTIC SLIDING ABRASION TESTER | 283 | |
WILLIAM TYPE ABRASION TESTER | 275 | |
59 | DU PONT TYPE FALLING IMPACT TESTER | 517 |
DU PONT TYPE FALLING IMPACT TESTER WITH LOW TEMP. OVEN | 517-L | |
66 | ELECTRIC SYSTEM PENCIL SCRATCH HARDNESS TESTER | 553-M |
PENCIL SCRATCH HARDNESS TESTER | 553 | |
67 | FULLY AUTOMATIC PENCIL SCRATCH HARDNESS TESTER | 553-AUTO |
PENCIL SCRATCH HARDNESS TESTER (LOADCELL TYPE) | 553-F |
YASUDA SEIKI - AUTOMATIC FILM APPLICATOR
