NON-METALIC ULTRASONIC DETECTOR
Harga : Rp 0.00 Rp 0.00
Brand : IWIN,T Instrument,Proceq,Hilti
Stok : In Stock
NON-METALIC ULTRASONIC DETECTOR
Product Overview
GTJ-U950/U960 non-metalic ultrasonic detector (multi-tube measuring pile) ultrasonic transmission method for pile integrity testing,structural concrete compressive strength,crack depth, crack width and defect detection; Diaphragm wall integrity testing, which integrates five function of pile testing,ultrasonic rebound comprehensive method strength measurement,defect detection,crack sounding and width measurement.
Geological exploration,rock integrity, weathering evalution test; mechanical properties of non-metalic materials such as rock mass and concrete
NON-METALIC ULTRASONIC DETECTOR

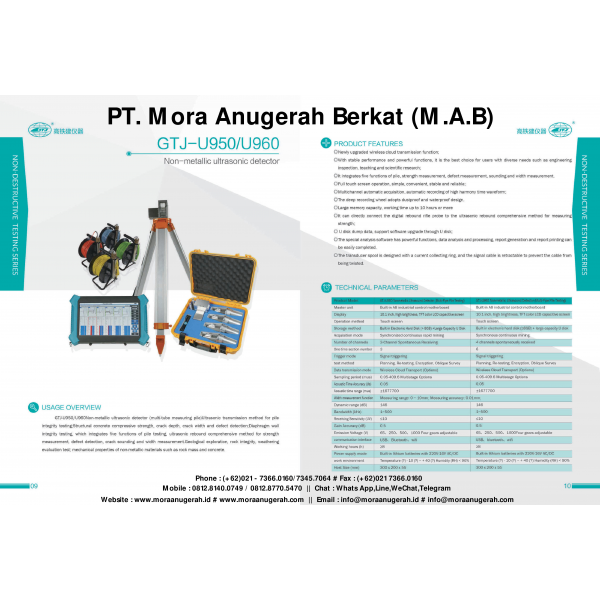

Click Here : Non-metalic Ultrasonic Detector Catalogue
Product Feature
- Newly upgraded wireless cloud transmission function
- With stable performance and powerful functions,it is the best choice for users with devirs need such as engginering,inspections,teaching and scientific research
- It integrates five functions of pile,strength measurement,defect measurement,sounding and width measurement
- Full touch screen operation , simple, convenient,stable and reliable
- Multichanel automatic acquisition, automatic recording of high harmony time wavefrom
- The deep recording wheel adopts dustproof and waterproof design
- Large memory capacity,working time up to 10 hours or more
- It can directlyconnect the digital rebound rifle probe to the ultrasonics rebound comprehensive methodfor measuring strength
- U disk dump data,support software upgrade through U disk
- The special analysis software has powerful functions,data analysis and processing, report generation and report printing can be easily completed
The transducer spool is design with a current collecting ring, and the signal cable is retractable to prevent the cable from being twisted
| Product Model | GTJ-U950 Nonmetalic Ultrasound Detector (Multi-Pipe Pile Testing) |
GTJ-U900 Nonmetalic Ultrasound Detector (Multi-Pipe Pile Testing) |
| Master Unit | Built-in A8 industrial control motherboard | Built-in A8 industrial control motherboard |
| Display | 10.1 inch,high brightness,TFT color LCD capacitive screen | 10.1 inch,high brightness,TFT color LCD capacitive screen |
| Operation Method | Touch Screen | Touch Screen |
| Storage Method | Built-in Electronics Hrad Disk (. 8 Gb)+ Large Capacity U Disk | Built-in Electronics Hrad Disk (. 8 Gb)+ Large Capacity U Disk |
| Acqusition Mode | Synchronized continuous report mining | Synchronized continuous report mining |
| Number Of Channels | 3-Channel Spontaneous Receiving | 4-Channel Spontaneous Receiving |
| On-time Section Number | 3 | 6 |
| Trigger Mode | Signal Triggering | Signal Triggering |
| Test Method | Planing, Re-testing, Encryption, Oblique Survey | Planing, Re-testing, Encryption, Oblique Survey |
| Data Transmission Mode | Wireless Clound Transport (Options) | Wireless Clound Transport (Options) |
| Sampling Period (mus) | 0.05 - 409.6 Multi Stage Options | 0.05 - 409.6 Multi Stage Options |
| Acoustic Time Accuracy (Us) | 0.05 | 0.05 |
| Acustic Time Range (Mus) | ± 16777000 | ± 16777000 |
| Width Measurement Function | Measuring Range : 0 - 10mm,Measuring Accuracy : 0,01mm | Measuring Range : 0 - 10mm,Measuring Accuracy : 0,01mm |
| Dynamic Range (dB) | 146 | 146 |
| Bandwith (kHz) | 1 - 500 | 1 - 500 |
| Receiving Sensivity (UV) | ≤ 10 | ≤ 10 |
| Gain Accuracy | 0.5 | 0.5 |
| Emmision Voltage (V) | 65, 250, 500, 1000 Four gears Adjustable | 65, 250, 500, 1000 Four gears Adjustable |
| Communication Interface | USB ; Bluetooth; Wifi | USB ; Bluetooth; Wifi |
| Working Hours (h) | ≥ 8 | ≥ 8 |
| Power Supply Mode | Built Lithium Batteries with 220V-16V AC/DC | Built Lithium Batteries with 220V-16V AC/DC |
| Work Enviroment | Temperature 0 - 40°C ; Humidity (RH) < 90% | Temperature 0 - 40°C ; Humidity (RH) < 90% |
| Hot Size (mm) | 300 x 200 x 55 | 300 x 200 x 55 |
