NON-METALLIC ULTRASONICS DETECTOR

Harga : Rp 0.00 Rp 0.00

Brand : IWIN,T Instrument,Proceq,Hilti

Stok : In Stock

Description
Review Product

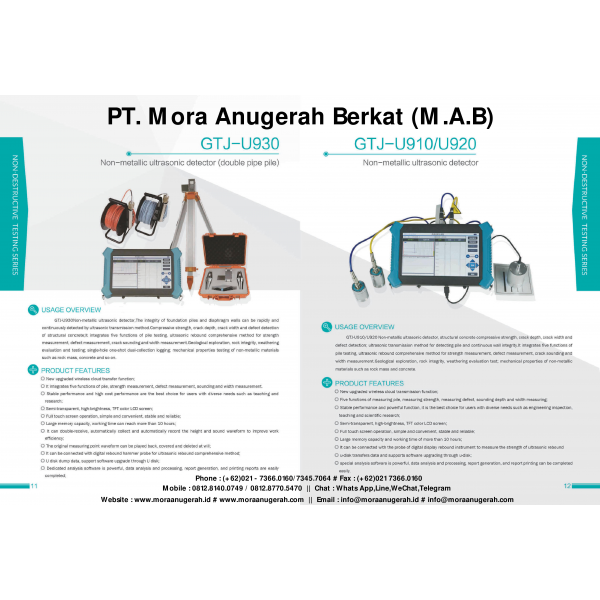

NON-METALLIC ULTRASONICS DETECTOR

GTJ-U920

Product Overview

Non-metallic ultrasonic detector GTJ-U910/U920, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing, ultrasonics rebound comprehensive method for strength measurement,defect measurement,crack sounding and width measurement.

NON-METALLIC ULTRASONICS DETECTOR

Geological explaration, rock integrity, weathering evaluation test, mechanical properties of non-metallic material such as rock mass and concrete

Product Features

·New upgraded wireless cloud transmission function
·Five functions of measuring pile, measuring strength, measuring defect,sounding depth and width measuring
·Stable performance and powerful function, it is the best choice for users with diverse need such as engineering inspection teaching and scientific research
·Semi-transparent,high brightness, TFT color LCD screen
·Full touch screen operation,simple and convenient, stable and reliable
·Large memory capacity and working time of mora than 10 hours
·It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonics rebound
·U disk transfer data and support software upgrading through u-disk
·Special analysis software is powerfull data analysis and processing report generation, and report printing can be completed easily

MODEL	GTJ - 910	GTJ - 920	GTJ - 930
Master Control Unit	Built-in A8 industrial control motherboard	Built-in A8 industrial control motherboard	Built-in A8 industrial control motherboard
Display	10.1 inch, high brightness, TFT Color LCD Capacitive U Disk	10.1 inch, high brightness, TFT Color LCD Capacitive U Disk	10.1 inch, high brightness, TFT Color LCD Capacitive U Disk
Operational Mode	Touch Screen	Touch Screen	Touch Screen
Storage Mode	Built in electronics hard Disk (>8Gb)+ large Capacity U Disk	Built in electronics hard Disk (>8Gb)+ large Capacity U Disk	Built in electronics hard Disk (>8Gb)+ large Capacity U Disk
Data Transmission Mode	Wireless Cloud Transport (Options)	Wireless Cloud Transport (Options)	Wireless Cloud Transport (Options)
Acquisition Mode	Single Channels manual point to point acquisition	Single Channels manual point to point acquisition	Single Channels manual point to point acquisition
Number Of Disposable Profile	---	---	---
Channel Number	I Transmit + 1 Receive	I Transmit + 2 Receive	I Transmit + 2 Receive
Trigger Mode	Signal triggering	Signal triggering	Signal triggering
Sampling Period (mus)	0.05 - 409.6 Multistage Options	0.05 - 409.6 Multistage Options	0.05 - 409.6 Multistage Options
Acoustic Time Range (Us)	Zero Point Zero Five	Zero Point Zero Five	Zero Point Zero Five
Acoustic Time Range (mus)	± 1677700	± 1677700	± 1677700
Width Measurement Fuction	Measuring Range : 0 - 10 mm; Measurement Accuracy : 0.01 mm	Measuring Range : 0 - 10 mm; Measurement Accuracy : 0.01 mm	Measuring Range : 0 - 10 mm; Measurement Accuracy : 0.01 mm
Dynamic Range (dB)	One hundred and Forty Six	One hundred and Forty Six	One hundred and Forty Six
Bandwith (kHz)	1 - 500	1 - 500	1 - 500
Receiving Sensivity (UV)	Less Then 10	Less Then 10	Less Then 10
Gain Accuracy (dB)	Zero Point Five	Zero Point Five	Zero Point Five
Emission Voltage (V)	65, 250, 500 and 1000 gears adjustable	65, 250, 500 and 1000 gears adjustable	65, 250, 500 and 1000 gears adjustable
Communication Interface	USB; Bluetooth, Wifi	USB; Bluetooth, Wifi	USB; Bluetooth, Wifi
Working Hours (h)	More than 8 Hours	More than 8 Hours	More than 8 Hours
Power Supply Mode	Built-in Lithium Battery External 220V - 16V AC/DC	Built-in Lithium Battery External 220V - 16V AC/DC	Built-in Lithium Battery External 220V - 16V AC/DC
Work Enviroment	Temperature - 10 °C to 40 °C Humidity (RH) < 90%	Temperature - 10 °C to 40 °C Humidity (RH) < 90%	Temperature - 10 °C to 40 °C Humidity (RH) < 90%
Host Size (mm)	300 X 200 X 55	300 X 200 X 55	300 X 200 X 55
