NON-METALIC ULTRASONICS DETECTOR

Harga : Rp 0.00 Rp 0.00

Brand : IWIN,T Instrument,Proceq,Hilti

Stok : In Stock





NON-METALIC ULTRASONICS DETECTOR

GTJ-U930

Product Overview

GTJ-U930 Non-metalic ultrasonics detector,the integrity of foundation piles and diaphragm wall can be rapidlyand continuously detected by ultrasonics transmission of method, compressive strength,crack depth,crack witdh and defect detection of structural concrete, it integrates five functions of pile testing,ultrasonics rebound comprehensive method for strength measurement,defect measurement, crack sounding and witdh measurement.

Geological exploration,rock integrity,weathering evaluation and testing; single-hole one-shot dual-collection logging mechanical properties testing of non-metallic materials such as rock mass,concrete and so on

Product Features

  • New upgraded wireless cloud transfer function
  • It integrates five functions of pile, strength measurement,defect measurement,sounding and width measurement
  • Stable performance and high cost performance are the best choice for users with diverse need such as teaching and research;
  • Semi-transparent,high-brightness, TFT Color LCD Screen
  • Full touch screen operation ,simple and convenient,stable and reliable
  • Large memory capacity,working time can reach more than 10 hours
  • It can double-receive, automatically collect and automatically record the height and sound wavefrom to efficiency
  • The original measuring point waveform can beplayed back,covered and deleted at will
  • It can be connected with digital rebound hammer probe for ultrasonic rebound comprehensive method
  • U disk dump data, support software upgrade through U disk
NON-METALIC ULTRASONICS DETECTOR

Dedicated analysis software is powerful,data analysis and processing, report generation and printing report are easily completed

MODEL GTJ - 910 GTJ - 920 GTJ - 930
Master Control Unit Built-in A8 industrial control motherboard Built-in A8 industrial control motherboard Built-in A8 industrial control motherboard
Display 10.1 inch, high brightness, TFT Color LCD Capacitive U Disk 10.1 inch, high brightness, TFT Color LCD Capacitive U Disk 10.1 inch, high brightness, TFT Color LCD Capacitive U Disk
Operational Mode Touch Screen Touch Screen Touch Screen
Storage Mode Built in electronics hard Disk (>8Gb)+ large Capacity U Disk Built in electronics hard Disk (>8Gb)+ large Capacity U Disk Built in electronics hard Disk (>8Gb)+ large Capacity U Disk
Data Transmission Mode Wireless Cloud Transport (Options) Wireless Cloud Transport (Options) Wireless Cloud Transport (Options)
Acquisition Mode Single Channels manual point to point acquisition Single Channels manual point to point acquisition Single Channels manual point to point acquisition
Number Of Disposable Profile --- --- ---
Channel Number I Transmit + 1 Receive I Transmit + 2 Receive I Transmit + 2 Receive
Trigger Mode Signal triggering Signal triggering Signal triggering
Sampling Period (mus) 0.05 - 409.6 Multistage Options 0.05 - 409.6 Multistage Options 0.05 - 409.6 Multistage Options
Acoustic Time Range (Us) Zero Point Zero Five Zero Point Zero Five Zero Point Zero Five
Acoustic Time Range (mus) ± 1677700 ± 1677700 ± 1677700
Width Measurement Fuction Measuring Range : 0 - 10 mm;
Measurement Accuracy : 0.01 mm
Measuring Range : 0 - 10 mm;
Measurement Accuracy : 0.01 mm
Measuring Range : 0 - 10 mm;
Measurement Accuracy : 0.01 mm
Dynamic Range (dB) One hundred and Forty Six One hundred and Forty Six One hundred and Forty Six
Bandwith (kHz) 1 - 500 1 - 500 1 - 500
Receiving Sensivity (UV) Less Then 10 Less Then 10 Less Then 10
Gain Accuracy (dB) Zero Point Five Zero Point Five Zero Point Five
Emission Voltage (V) 65, 250, 500 and 1000 gears adjustable 65, 250, 500 and 1000 gears adjustable 65, 250, 500 and 1000 gears adjustable
Communication Interface USB; Bluetooth, Wifi USB; Bluetooth, Wifi USB; Bluetooth, Wifi
Working Hours (h) More than 8 Hours More than 8 Hours More than 8 Hours
Power Supply Mode Built-in Lithium Battery
External 220V - 16V AC/DC
Built-in Lithium Battery
External 220V - 16V AC/DC
Built-in Lithium Battery
External 220V - 16V AC/DC
Work Enviroment Temperature - 10 °C to 40 °C
Humidity (RH) < 90%
Temperature - 10 °C to 40 °C
Humidity (RH) < 90%
Temperature - 10 °C to 40 °C
Humidity (RH) < 90%
Host Size (mm) 300 X 200 X 55 300 X 200 X 55 300 X 200 X 55

Untuk mengetahui spesifikasi,model dan type dari NON-METALIC ULTRASONICS DETECTOR silahkan click link/tautan yang ada di bawah ini :

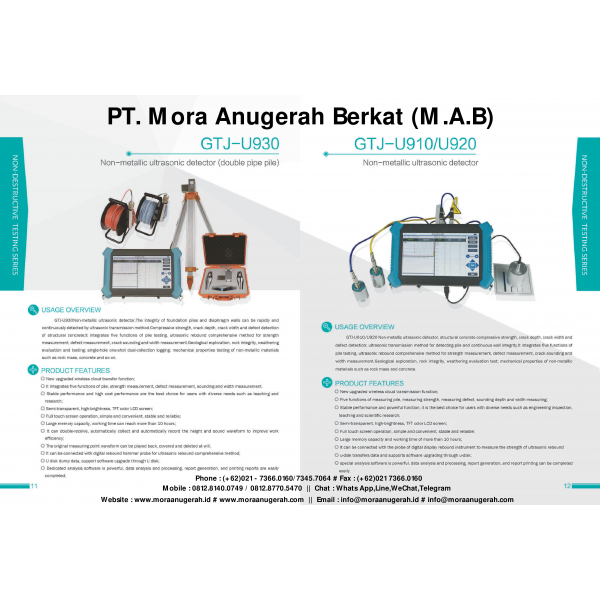

NON –METALLIC ULTRASONICS DETECTOR (DOUBLE PIPE PILE) CATALOGUE
