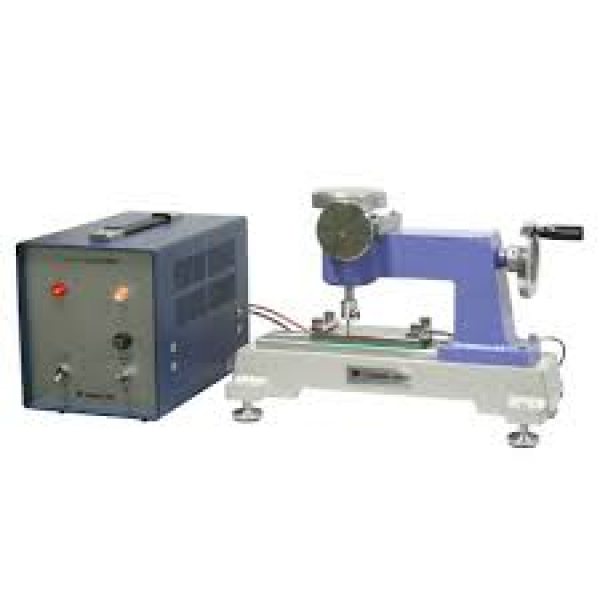

PAINT FILM DRAWING TESTER

Method / Standard : JIS-K6894

This tester is used to evaluate the adhesiveness of fluorine resin coating film on metallic surface according to the drawing test method. The operator is to draw a spiral 25 times on the coating surface with a steel needle that is applied with a prescript load to judge the adhesiveness of the coating film.

Spesifikasi

Specimen Base	54 × 120 mm
Stroke	Max. 72 mm
Drawing	Spiral φ10 mm or φ9 mm, Spacing 2.5 mm
Weight Load	Initial 100 g to Max. 2,000 ｇ (Standard 500 gf)
Needle	φ3 ± 0.05 mm, L23 ± 1 mm, Top Angle 60 ± 5°
Option	Heating Plate Spec, Conduction Device
Power Source	AC 100 V, 1-Phase, 1 A, 50/60 Hz
Dimensions/ Weight (Approx.)	Tester Body: W340 × D200 × H445 mm, 15 kg Conduction Device: W250 × D360 × H250 mm, 5 kg
