ROSS FLEXING TESTER

Harga : Rp 0.00 Rp 0.00

Brand : YASUDA SEIKI,TESTEX,GESTER INST,COMETECH,TOYOSEIKI and etc

Stok : In Stock

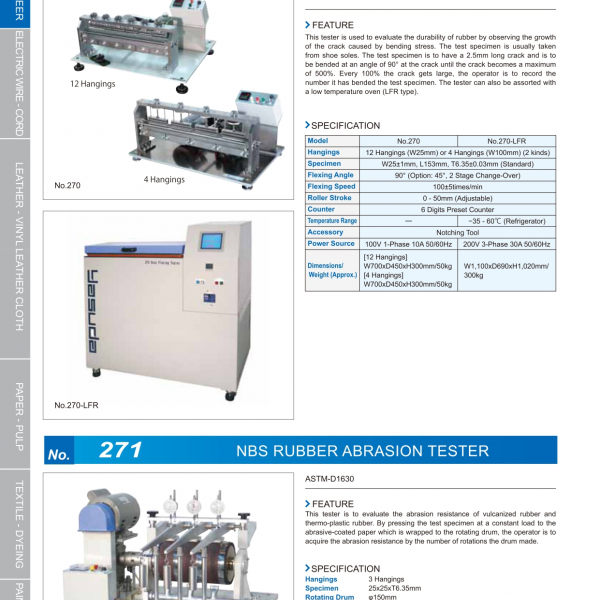

ROSS FLEXING TESTER
'

No. 270 Ross Flexing Tester

No. 270-LFR Ross Flexing Tester With Low Temp.Oven

ASTM-D1052

Feature :

This tester is used to evaluate the durability of rubber by observing the growth of the crack caused by bending stress. The test specimen is usually taken from shoe soles. The test specimen is to have a 2.5mm long crack and is to be bended at an angle of 90° at the crack until the crack becomes a maximum of 500%. Every 100% the crack gets large, the operator is to record the number it has bended the test specimen. The tester can also be assorted with a low temperature oven (LFR type).


ROSS FLEXING TESTER

CLICK HERE : ROSS FLEXING TESTER CATALOGUE


\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n
Specification :
ModelNO.270NO.270-LFR
Hangings12 Hangings (W25mm) or 4 Hangings (W100mm) (2 kinds)
SpecimenW25+1mm, L153mm, T6.35+0.03mm (Standard)
Flexing Angle90° (Option: 45° , 2 Stage Change-Over)
Flexing Speed100+5 times/min
Roller Stroke0 - 50mm (Adjustable)
Counter6 Digits Preset Counter
Temperature Range--35° - 60°C (Refrigerator)
AccessoryNotching Tool
Power Source100V 1-Phase 10A 50/60Hz200V 3-Phase 30A 50/60Hz

Dimensions/ Weight (Approx.)

[ 12 Hangings ]

W1, 100xD690xH1, 020mm/300kg

W700xD450xH300mm/50kg
[ 4 Hangings ]
W700xD450xH300mm/50kg


ROSS FLEXING TESTER

CLICK HERE : ROSS FLEXING TESTER CATALOGUE
