NOTCHING MACHINE

Brand : Qualitest,Yasuda Seiki,Toyoseiki,Drick

Stok : In Stock

Method Standard : JIS-K7144, ISO-2818
Adding the electronic specimen sending system together with side cutting and electronic notch depth adjuster to the usual NOTCHING MACHINE, the automated series provides the operator to conduct optimal notching conditions for impact test samples.
Click Here : Notching Machine Brochure

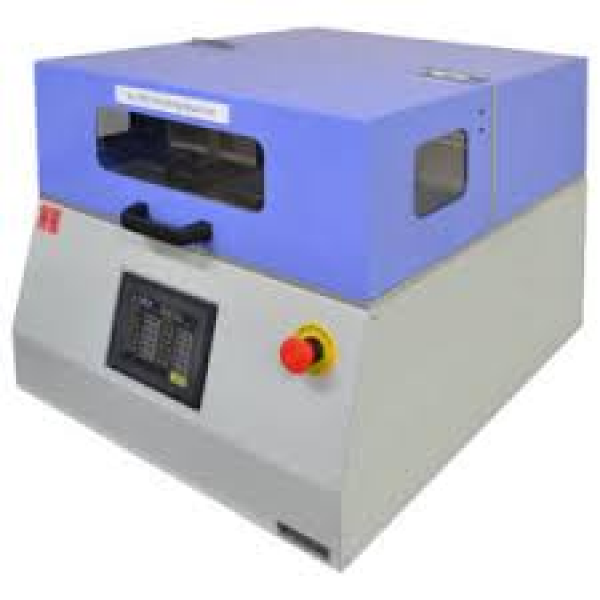

Spesifikasi PNA/PNCA NOTCHING MACHINE AUTOMATIC

Model	No.189-PNA	No.189-PNCA
Clamp	Opening Max. 80 mm (4 mm × 20 pcs), Feed Speed 50 to 600 mm/min	Opening Max. 80 mm (4 mm × 20 pcs), Feed Speed 50 to 600 mm/min
Cutter Axis	1 Axis (Notch only)	1 Axis (Notch & Side Cut)
Cutter Rotation Speed (Option)	150 to 1,780 rpm	150 to 1,780 rpm
Notch Depth	Automatic, Range 0 to 4 mm (Scale 0.01 mm)	Automatic, Range 0 to 4 mm (Scale 0.01 mm)
V-Notch Cutter	Single Tooth Tip, Outer Diameter φ75 mm, T6.5 mm, Top Angle 45°, Top R 0.25 mm ; Material: High Speed Steel (Option: Cemented Carbide)	Single Tooth Tip, Outer Diameter φ75 mm, T6.5 mm, Top Angle 45°, Top R 0.25 mm ; Material: High Speed Steel (Option: Cemented Carbide)
Side Cutter	-	Width 80 mm (Standard),Outer Diameter φ100 mm, T1.6 mm
Accessory	Suction Device (Vacuum Cleaner)	Suction Device (Vacuum Cleaner)
Option	Pneumatic Clamp, U-Notch Cutter	Pneumatic Clamp, U-Notch Cutter
Power Source	AC 100 V, 1-Phase, 15 to 20 A, 50/60 Hz	AC 100 V, 1-Phase, 15 to 20 A, 50/60 Hz
Dimensions/Weight (Approx.)	Dimensions/ Weight (Approx.)	Dimensions/ Weight (Approx.)

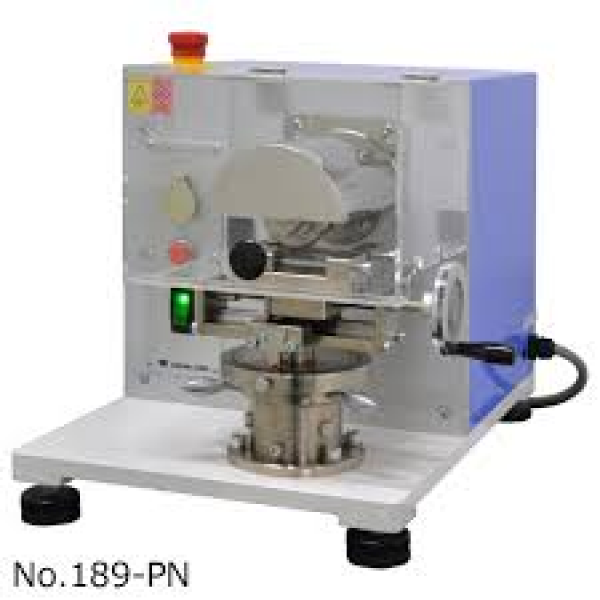

PN NOTCHING MACHINE

Method Standard : JIS-K7144, ISO-2818
This machine is used to make a notch into test specimens that is required for Charpy and Izod impact tests. When replacing the notch knife, the notch knife can be independently taken off to realize low running cost.
Click Here : Notching Machine Brochure

Specification
Clamp	Opening Max. 40 mm (Standard: 4 mm × 10 pcs), Feed Speed 1.75 mm/ 1 turn
Cutter Rotation Speed (Approx.)	600 rpm (60 Hz), 500 rpm (50 Hz)
Notch Depth	Manual, Range 0 to 4 mm (Scale 0.01 mm)
V-Notch Cutter	Single Tooth Tip, Outer Diameter φ75 mm, T6.5 mm, Top Angle 45°, Top R 0.25 mm,
	Material: High Speed Steel (Option: Cemented Carbide)
Option	Pneumatic Clamp, U-Notch Cutter
Power Source	AC 100 V, 1-Phase, 15 A, 50/60 Hz
Dimensions/ Weight (Approx.)	W420 × D530 × H380 mm, 50 kg
