YASUDA SEIKI - De Mattia Flex-Cracking and Crack Growth Tester Series
Harga : Rp 0.00 Rp 0.00
Brand : Qualitest,Yasuda Seiki,Toyoseiki,Drick
Stok : In Stock
YASUDA SEIKI - De Mattia Flex-Cracking and Crack Growth Tester Series
- No.119 DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER
- Standard Method : JIS-K6260、ASTM-D813、BS-903、ISO-132
- This tester is used to measure the appearance of cracks and the growth of the cracks to vulcanized rubber and thermo-plastic rubber by adding repetitive bending stress. The test is conducted by setting the test specimen to the parallel allocated Chuck and adding repetitive bending stress. The tester can also be assorted with a low temperature oven (L type).
YASUDA SEIKI - De Mattia Flex-Cracking and Crack Growth Tester Series

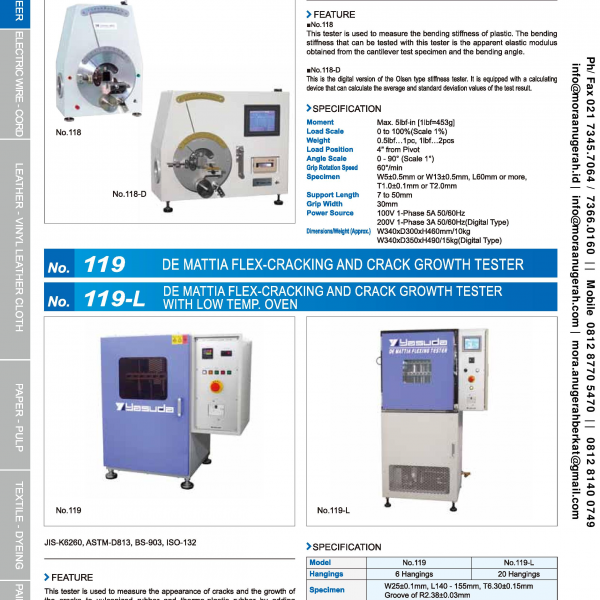

Click Here : Catalog De Mattia Flex - Cracking And Crack Growth Tester

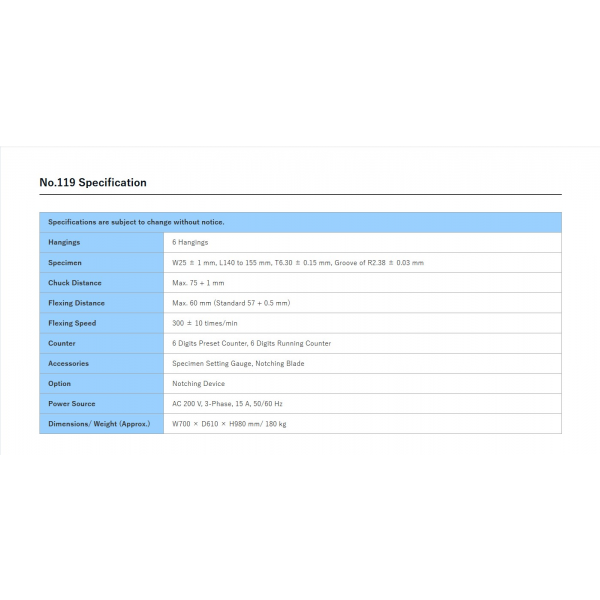

| No.119 DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER | |
| Spesifikasi | |
| Hangings | 6 Hangings |
| Specimen | W25 ± 1 mm, L140 to 155 mm, T6.30 ± 0.15 mm, Groove of R 2.38 ± 0.03 mm |
| Chuck Distance | Max. 75 ＋ 1 mm |
| Flexing Distance | Max. 60 mm (Standard 57 + 0.5 mm) |
| Flexing Speed | 300 ± 10 times/min |
| Counter | 6 Digits Preset Counter, 6 Digits Running Counter |
| Temperature Range | -35 to 150 °C (Refrigerator) |
| Accessories | Specimen Setting Gauge, Notching Blade |
| Option | Notching Device |
| Power Source | AC 200 V, 3-Phase, 40 A, 50/60 Hz |
| Dimensions / Weight (Approx.) | W700 × D610 × H980 mm / 180 kg |
=========================================================

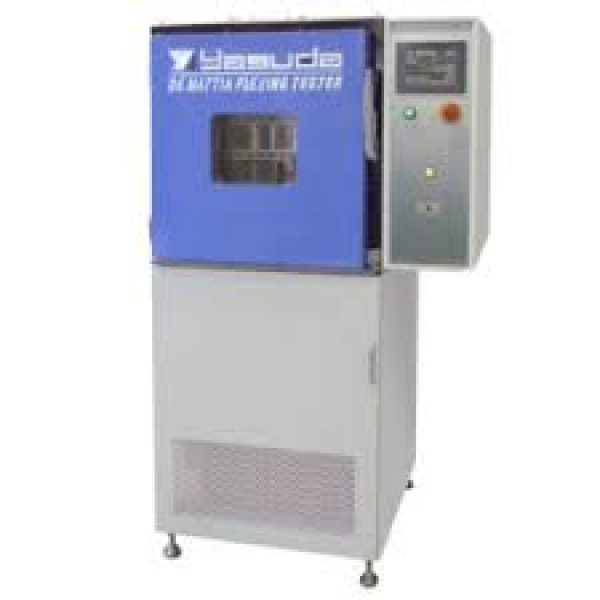

- No.119-L DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER (WITH REFRIGERATING MACHINE)
- Standard Method : JIS-K6260、ASTM-D813、BS-903、ISO-132
- This tester is used to measure the appearance of cracks and the growth of the cracks to vulcanized rubber and thermo-plastic rubber by adding repetitive bending stress. The test is conducted by setting the test specimen to the parallel allocated Chuck and adding repetitive bending stress.
| No.119-L DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER (WITH REFRIGERATING MACHINE) | |
| Spesifikasi | |
| Hangings | 6 Hangings, 20 Hangings |
| Specimen | W25 ± 0.1 mm, L140 to 155 mm, T6.30 ± 0.15 mm, Groove of R2.38 ± 0.03 mm |
| Chuck Distance | Max. 75 + 1 mm |
| Flexing Distance | Max. 60 mm (Standard 57 + 0.5 mm) |
| Flexing Speed | 300 ± 10 times/min |
| Counter | 6 Digits Preset Counter, 6 Digits Running Counter |
| Temperature Range | -35 to 60 °C (Refrigerator) |
| Accessories | Specimen Setting Gauge, Notching Blade |
| Option | Notching Device |
| Power Source | AC 200 V, 3-Phase, 40 A, 50/60 Hz |
| Dimensions / Weight (Approx.) |
6 Hangings : W920 × D830 × H1,650 mm / 470 kg 20 Hangings : W920 × D830 × H1,650 mm / 500 kg |
=========================================================

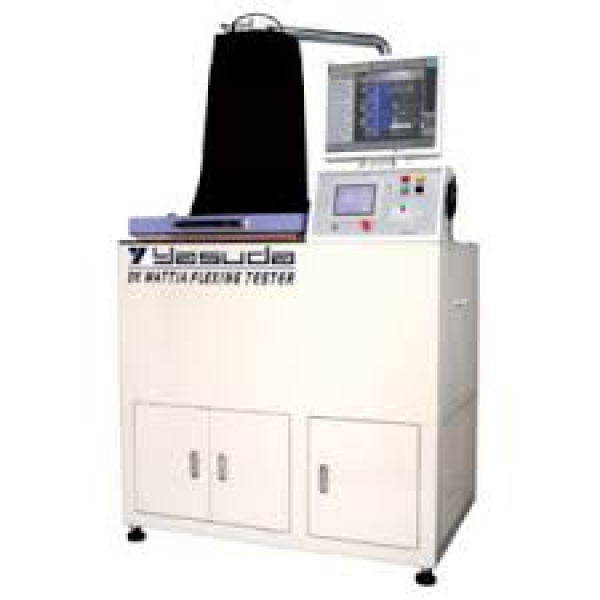

- No.119-L-VR DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER (WITH REFRIGERATING MACHINE/ PICTURE BREAK DETECTION FUNCTION)
- Standard Method : JIS-K6260、ASTM-D813、BS-903、ISO-132
- This tester is equipped with a super-high-speed camera, which enables the operator to observe and save the appearance and the growth of the cracks. Since the test can be monitored by the super-high-speed camera, the test can be run without any discontinuance.
| No.119-L-VR DE MATTIA FLEX-CRACKING AND CRACK GROWTH TESTER (WITH REFRIGERATING MACHINE / PICTURE BREAK DETECTION FUNCTION) | |
| Spesifikasi | |
| Hangings | 12 Hangings |
| Specimen | W25 ± 1 mm , L140 to 155 mm, T6.30 ± 0.15 mm, Groove of R 2.38 ± 0.03 mm |
| Chuck Distance | Max. 75 ＋ 1 mm |
| Flexing Distance | Max. 60 mm (Standard 57 + 0.5 mm) |
| Flexing Speed | 300 ± 10 times/min |
| Counter | 8 Digits Preset Counter, 8 Digits Running Counter |
| Timer | Max. 999 hr |
| Temperature Range | -35 to 60 °C (Refrigerator) |
| Break Detection | High Speed Digital Picture Camera |
| Accessories | Specimen Setting Gauge, Notching Blade |
| Option | Notching Device |
| Power Source | AC 200 V, 3-Phase, 40 A, 50/60 Hz |
| Dimensions / Weight (Approx.) |
W1,100 × D1,000 × H1,825 mm / 450 kg |
