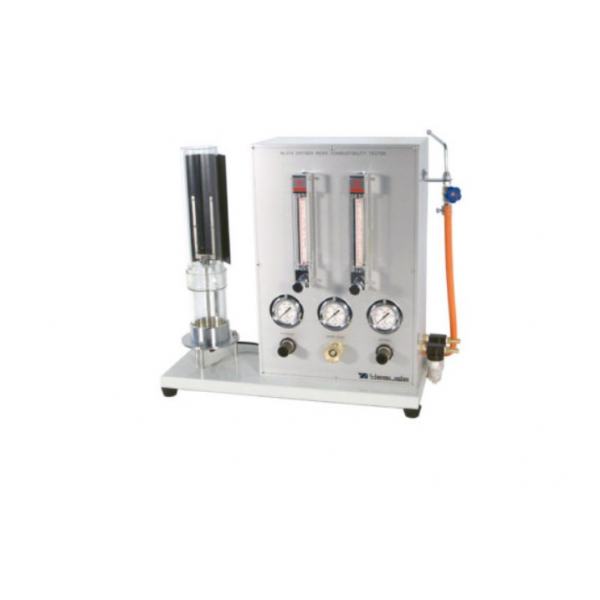

No.214 OXYGEN INDEX FLAMMABILITY TESTER
Harga : Rp 0.00
Brand : Yasuda Seiki,Testex,Cometech,Drick
Stok : In Stock
No.214 OXYGEN INDEX FLAMMABILITY TESTER
- No.214 OXYGEN INDEX FLAMMABILITY TESTER
- Standard Method : JIS-K6269, K7201, L1091, ASTM-D2863, ISO-4589-2, Japanese Fire Services Act
- This tester is used to evaluate the oxygen index flammability of plastic and rubber.
- The operator is to check the lowest oxygen level (the oxygen level is acquired from a mixture gas of oxygen and nitrogen) that the test specimen is capable to flame inside the flaming column.
No.214 OXYGEN INDEX FLAMMABILITY TESTER

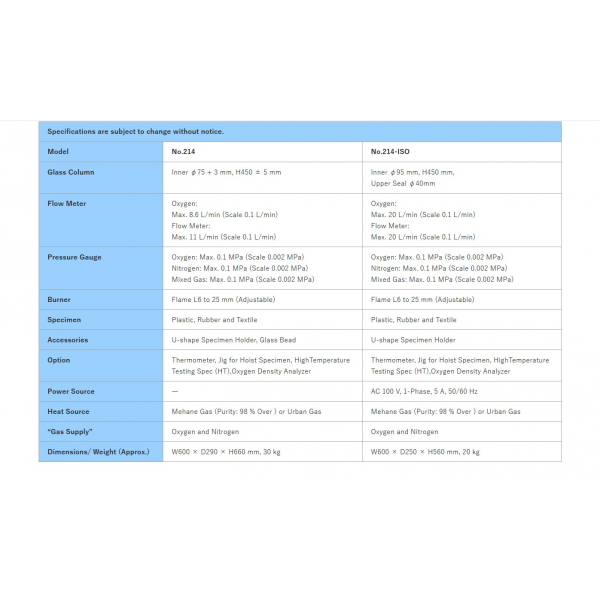

| Specification | OXYGEN INDEX FLAMMABILITY TESTER | |
| Model | No.214 | No.214-ISO |
| Glass Column |
Inner φ75 + 3 mm, H450 ± 5 mm |
Inner φ95 mm, H450 mm, Upper Seal φ40mm |
| Flow Meter |
Oxygen : Max. 8.6 L/min (Scale 0.1 L/min) Flow Meter : Max. 11 L/min (Scale 0.1 L/min) |
|
|
Pressure |
Oxygen: Max. 0.1 MPa (Scale 0.002 MPa) | |
| Nitrogen: Max. 0.1 MPa (Scale 0.002 MPa) | ||
| Mixed Gas: Max. 0.1 MPa (Scale 0.002 MPa) | ||
| Burner | Flame L6 to 25 mm (Adjustable) | |
| Specimen | Plastic, Rubber and Textile | |
| Accessories | U-shape Specimen Holder, Glass Bead | |
| Option | Thermometer, Jig for Hoist Specimen, HighTemperature Testing Spec (HT), Oxygen Density Analyzer |
|
| Power Source | ――― | AC 100 V, 1-Phase, 5 A, 50/60 Hz |
| Heat Source | Mehane Gas (Purity: 98 % Over ) or Urban Gas | |
| Gas Supply | Oxygen and Nitrogen | |
| Dimensions / Weight (Approx.) |
W600 × D290 × H660 mm, 30 kg | |
