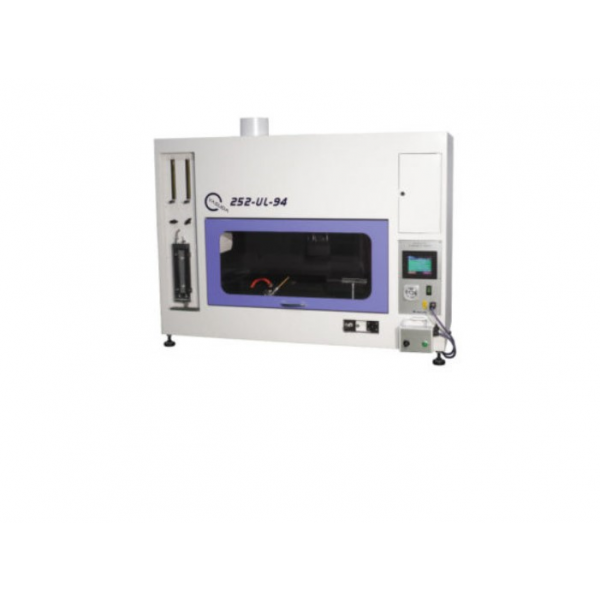

YASUDA SEIKI - PLASTIC FLAMMABILITY TESTER
Harga : Rp 0.00 Rp 0.00
Brand : Yasuda Seiki,Testex,Cometech,Drick
Stok : In Stock
YASUDA SEIKI - PLASTIC FLAMMABILITY TESTER
YASUDA SEIKI - PLASTIC FLAMMABILITY TESTER
- No.252-UL-94 (MANUAL) PLASTIC FLAMMABILITY TESTER
- No.252-UL-94 (ELECTRIC SYSTEM) PLASTIC FLAMMABILITY TESTER
- Method Standard : UL-1581,ASTM-D5025,D5207
- This tester is to evaluate the flammability resistance of electric wires by conducting a vertical flammability test. The operator is to fix the test specimen to the upper and lower Chuck and tilt the burner 20° to burn the test specimen for 15 seconds.
| Model | No.252-UL-94 (MANUAL) |
No.252-UL-94 (ELECTRIC SYSTEM) |
| Specification | ||
| Chamber | 1,000 × 555 × 900 mm (Volume Approx. 0.5 m3) |
1,000 × 555 × 900 mm (Volume Approx. 0.5 m3) |
| Specimen | L125 ± 5 mm, W13.0 ± 0.5 mm, T13 mm or less |
L125 ± 5 mm, W13.0 ± 0.5 mm, T13 mm or less |
| Burner | L100 ± 10 mm, Inner Diameter φ9.5 ± 0.3 mm |
L100 ± 10 mm, Inner Diameter φ9.5 ± 0.3 mm |
| Burner Base |
Slide type (With Operation Handle), Inclination Angle 45 ± 2°, 20 ± 5° (5 V) |
Slide type (With Jog Dial type Controller), Inclination Angle 45 ± 2°, 20 ± 5° (5 V) |
|
Burner Calibration Device |
Flow Meter : Max.150 ml/min (Scale 2 ml/min) (Standard 105 ml/min) ; Flow Meter: Max. 1,000 ml/min (Scale 10 ml/min) (Standard 965 ml/min) Manometer: Max. 200 (± 100) mmH2O (Scale 1 mmH2O) (Standard 10 mmH2O) Timer, Built-In Thermometer |
Flow Meter : Max.150 ml/min (Scale 2 ml/min) (Standard 105 ml/min) ; Flow Meter: Max. 1,000 ml/min (Scale 10 ml/min) (Standard 965 ml/min) Manometer: Max. 200 (± 100) mmH2O (Scale 1 mmH2O) (Standard 10 mmH2O) Timer, Built-In Thermometer |
|
Accessories |
Flame Gauge (20 mm) (Option: 125 mm & 38 mm), Ring Stand,Wire Mesh, Dry Cotton Pad, Fireproof Gloves, Gas Lighter |
Flame Gauge (20 mm) (Option: 125 mm & 38 mm), Ring Stand,Wire Mesh, Dry Cotton Pad, Fireproof Gloves, Gas Lighter |
| Option | Horizontal Burning Support Fixture (HB), Plaque Support Fixture (5 V), Spring Clamp (VTM), Foam Support Fixture |
Horizontal Burning Support Fixture (HB), Plaque Support Fixture (5 V), Spring Clamp (VTM), Foam Support Fixture |
| Power Source | AC 100 V, 1-Phase, 15 A, 50/60 Hz | AC 100 V, 1-Phase, 15 A, 50/60 Hz |
| Heat Source | Methane Gas (Purity: 98 % Over) | Methane Gas (Purity: 98 % Over) |
| Dimensions / Weight (Approx.) |
W1,510 × D610 × H1,100 mm / 200 kg |
W1,500 × D615 × H1,100 mm / 230 kg |
YASUDA SEIKI - PLASTIC FLAMMABILITY TESTER
