UNIVERSAL SAMPLE SPLITTERS

Harga : Rp 0.00 Rp 123.00

Brand : Lokal,Ele,Matest,Gilson,Forney,Humboldt,Control,UTest,

Stok : In Stock

Description
Review Product

UNIVERSAL SAMPLE SPLITTERS

Universal Sample Splitters are used to split material sizes from fi nes to 4 inches. They have adjustable chutes. Three different hopper sizes are available. A set of steel bars adjusts chutes to desired width. The bars are held together by wing nuts on the pivot rod ends. Hoppers have a lever release.

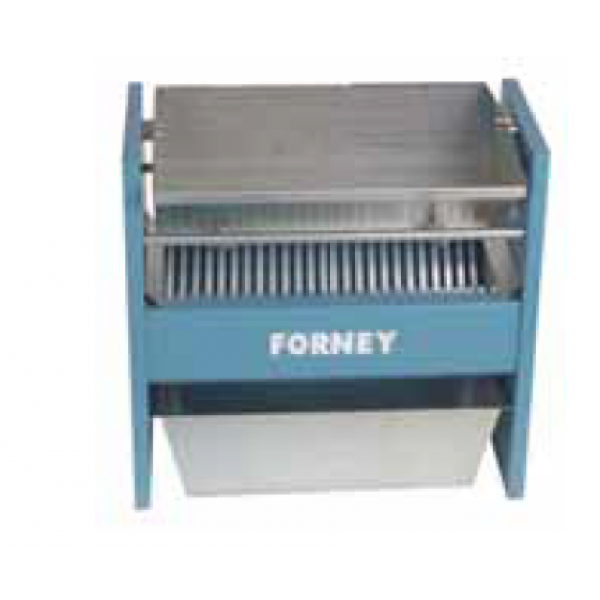

The FORNEY Floor Model Splitter is the most versatile. The chute openings can be adjusted fromone-half to 4 inches; it has a hopper capacity of 1 cu ft. Dimensions: 29 x 19 x 34½in (WDH).

The Porta Splitter's chute openings can be adjusted from one-half inch to 3 inches and has a .55 cu ft hopper capacity. Dimensions: 22 x 14½ x 20½ in. (WDH). The Mass Splitter can process large samples from one to 12 inches, and large particle sizes (up to 400 lb fi eld aggregate samples per ASTM D-75. It has two pans on each side to receive the split sample. Dimensions: 56 x 26 x 41 inches

Model	Shipping Weight	Product Number
Sample Splitter - Porta Splitter - chutes 1/2 to 3 inches, .5 cu ft hopper	64 lb (29.1kg)	LA-0455
Sample Splitter - FORNEY Floor Model Splitter - chutes 1/2 to 4 inches,1 cu ft hopper	136 lb (61.8kg)	LA-0460
Sample Splitter - Mass Splitter - chutes 1 to 12 inches, 3.5 cu ft hopper	460 lb (209.1kg)	LA-0460-01

Parts and Accessories	Product Number
Pan for Porta-Splitter 19.5 x 7 x 6 in	LA-0456
Pan for FORNEY Floor Model Splitter - 26 x 9 x 7 in	LA-0459
Pan for Mass Splitter, 25 x 9 x 8 in	LA-0460-02
