ULTRASONIC SIEVE CLEANERS
Harga : Rp 0.00 Rp 0.00
Brand : MATEST, GILSON, FORNEY, HUMBOLDT, UTEST and etc
Stok : In Stock

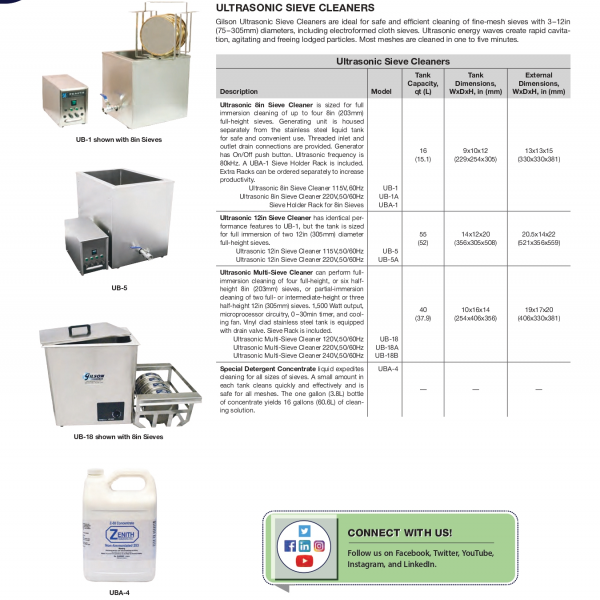

ULTRASONIC SIEVE CLEANERS
Gilson Ultrasonic Sieve Cleaners are ideal for safe and efficient cleaning of fine-mesh sieves with 3 –12in (75 – 305mm) diameters, including electroformed cloth sieves. Ultrasonic energy waves create rapid cavitation, agitating and freeing lodged particles. Most meshes are cleaned in one to five minutes.
ULTRASONIC SIEVE CLEANERS
Click Here : Ultrasonic Sieve Cleaners Catalog
CLICK HERE : AGGREGATES TEST EQUIPMENT CATALOG
Specification Ultrasonic Sieve Cleaners :
| Description | Model | Tank Capacity, qt (L) |
Tank Dimensions, WxDxH, in (mm) |
External Dimensions, WxDxH, in (mm) |
| Ultrasonic 8in Sieve Cleaner is sized for full | ||||
| immersion cleaning of up to four 8in (203mm) | ||||
| full-height sieves. Generating unit is housed | ||||
| separately from the stainless steel liquid tank | ||||
| for safe and convenient use. Threaded inlet and | 16 | 9x10x12 | 13x13x15 | |
| outlet drain connections are provided. Generator | (15.1) | (229x254x305) | (330x330x381) | |
| has On/Off push button. Ultrasonic frequency is | ||||
| 80kHz. A UBA-1 Sieve Holder Rack is included. | ||||
| Extra Racks can be ordered separately to increase | ||||
| productivity. | ||||
| Ultrasonic 8in Sieve Cleaner 115V, 60Hz | UB-1 | |||
| Ultrasonic 8in Sieve Cleaner 220V, 50/60Hz | UB-1A | |||
| Sieve Holder Rack for 8in Sieves | UBA-1 | |||
| Ultrasonic 12in Sieve Cleaner has identical per- | ||||
| formance features to UB-1, but the tank is sized | 55 | 14x12x20 | 20.5x14x22 | |
| for full immersion of two 12in (305mm) diameter | -52 | (356x305x508) | (521x356x559) | |
| full-height sieves. | ||||
| Ultrasonic 12in Sieve Cleaner 115V, 50/60Hz | UB-5 | |||
| Ultrasonic 12in Sieve Cleaner 220V, 50/60Hz | UB-5A | |||
| Ultrasonic Multi-Sieve Cleaner can perform full- | ||||
| immersion cleaning of four full-height, or six half- | ||||
| height 8in (203mm) sieves, or partial-immersion | 40 | 10x16x14 | 19x17x20 | |
| cleaning of two full- or intermediate-height or three | (37.9) | (254x406x356) | (406x330x381) | |
| half-height 12in (305mm) sieves. 1,500 Watt output, | ||||
| microprocessor circuitry, 0 – 30min timer, and cool- | ||||
| ing fan. Vinyl clad stainless steel tank is equipped | ||||
| with drain valve. Sieve Rack is included. | ||||
| Ultrasonic Multi-Sieve Cleaner 120V, 50/60Hz | UB-18 | |||
| Ultrasonic Multi-Sieve Cleaner 220V, 50/60Hz | UB-18A | |||
| Ultrasonic Multi-Sieve Cleaner 240V, 50/60Hz | UB-18B | |||
| Special Detergent Concentrate liquid expedites | UBA-4 | |||
| cleaning for all sizes of sieves. A small amount in | ||||
| each tank cleans quickly and effectively and is | - | - | - | |
| safe for all meshes. The one gallon (3.8L) bottle | ||||
| of concentrate yields 16 gallons (60.6L) of clean- | ||||
| ing solution. |
| Ultrasonic Sieve Cleaners | ||||
| Description | Model | Tank Capacity, qt (L) |
Tank Dimensions, WxDxH, in (mm) |
External Dimensions, WxDxH, in (mm) |
| Ultrasonic Rotating Sieve Cleaner cleans four full- | UB-8 | 30 | 19.9x11.8x7.9 | 22.4x13.4x12.6 |
| height 8in (203mm) fine or coarse sieves with | [ 28 ] | (505x300x201) | (569x340x320) | |
| powerful 37kHz ultrasonic frequency at tempera- | ||||
| tures from 86° to 176°F (30° to 80°C). Sieves are | ||||
| rotated at an angle during cleaning, allowing con- | ||||
| taminants to fall to the bottom of the tank. Two | ||||
| operating modes ensure thorough cleaning. Pulse | ||||
| mode produces intermittent bursts of power for | ||||
| ntense cleaning. Sweep mode creates small vari- | ||||
| ations in frequency for more uniform and thorough | ||||
| cleaning. LED displays illuminate when Pulse | ||||
| mode is activated and when the set tempera- | ||||
| ture is reached. Operation is controlled through a | ||||
| 30-minute timer with automatic shutdown or can | ||||
| be run continuously until shut off manually. Auto- | ||||
| matic shutdown occurs at 194°F (90°C) or after 8 | ||||
| hours of continuous operation. A drain valve for | ||||
| the stainless steel tank is located on the side for | ||||
| easy access. Two-year manufacturer’s warranty. | ||||
| Operates on 115V, 60Hz power. | ||||
| Ultrasonic Cleaner for 3in to 8in Sieves features | ||||
| a 5.2qt (5L) tank for full-immersion cleaning of one | ||||
| full-height 8in (203mm) sieve or four full-height | ||||
| 3in (76mm) sieves with powerful 37kHz ultrasonic | ||||
| frequency. Three operating modes include sieve | ||||
| cleaning using alternating pulses to remove stub- | 5.2 | dia.xH | dia.xH | |
| born sieve residue, sample prep to clean tools and | -5 | 9.45x5.5 | 11.97x13.2 | |
| instruments, and degas for removing gasses from | (240x140) | (304x335) | ||
| cleaning solutions. The unit features a 30-minute | ||||
| timer and microprocessor-controlled transducer | ||||
| for reliable operation. Set time and time remaining | ||||
| is shown on the LED display, or unit can operate | ||||
| continuously with manual shutoff. The UBA-123 | ||||
| Sieve Holder and UBA-121 Basket provide conve- | ||||
| nient insertion and removal of sieves or laboratory | ||||
| instruments and are purchased separately. | ||||
| Ultrasonic Cleaner for 3in to 8in Sieves 115V, 60Hz | UB-12 | |||
| Ultrasonic Cleaner for 3in to 8in Sieves 220V, 50Hz | UB-12F | |||
| Ultrasonic Sieve Cleaner Basket | UBA-121 | |||
| Sieve Holder | UBA-123 | |||
| Ultrasonic 3in Sieve Cleaner is ideal for | ||||
| full-immersion cleaning of 3in (76mm) diameter | ||||
| sieves, including electroformed meshes as fine | ||||
| as 5μm. It is recommended for Gilson 3in Acrylic | 3.4 | 4x5.4x9.4 | 9x8.1x12.5 | |
| Frame Sieves. The 320 Watt output generator fea- | (3.2) | (102x137x239) | (229x206x318) | |
| tures microprocessor circuitry and 0 – 30min timer. | ||||
| Stainless steel tank is equipped with drain valve. | ||||
| 120V, 50/60Hz, 1 amp. UBA-100 stainless steel | ||||
| Sieve Holder is purchased separately. | ||||
| Ultrasonic 3in Sieve Cleaner 120V, 50/60Hz | UB-15 | |||
| Sieve Holder Rack for 3in Sieves | UBA-100 | |||
