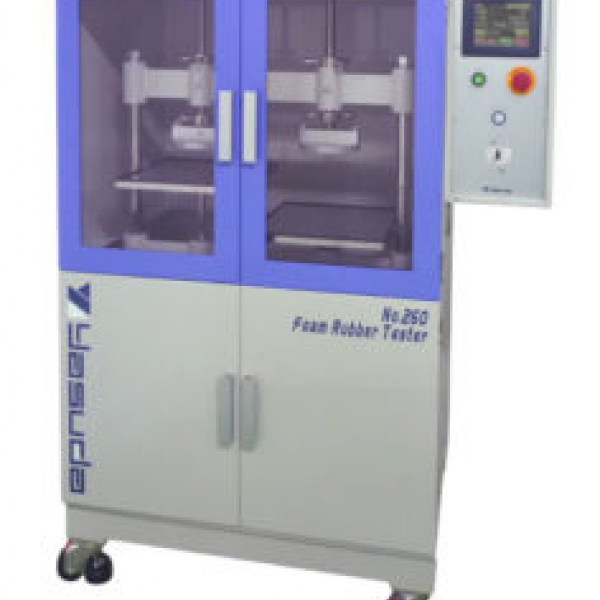

No.260 Foam Rubber Repetitive Compression Tester.
Harga : Rp 0.00
Brand : Yasuda Seiki,Qualitest, Tester Sangyo Co,Tester,Drick Inst
Stok : In Stock
No.260 Foam Rubber Repetitive Compression Tester.
No.260 Foam Rubber Repetitive Compression Tester
- No.260 FOAM RUBBER REPETITIVE COMPRESSION TESTER
- Standard Method : JIS-(K6382), K6400-4
- This tester is used to repeatedly test compression residual strain of polyurethane foam and latex foam soft material according to the constant displacement method.
- Placing the test specimen between the two parallel plates and continuously repeating the compression to the test specimen 80,000 times at a compressing power so that the test specimen’s thickness becomes 50 % of the initial size. 30 minutes after the test specimen has been repeatedly compressed, the decreasing rate of the test specimen’s thickness is to be measured.
| No.260 FOAM RUBBER REPETITIVE COMPRESSION TESTER | |
| Specification | |
| Hanging | 2 Hangings |
| Specimen | T20 mm or More, Width or Length 50 mm or More |
| Compression Platen | 310 × 310 mm, Vent φ6 mm (Pitch 20 mm) |
| Compression Stroke | 10 to 100 mm (2 Lines Adjustable) |
| Compression Speed | 60 times/min |
| Counter | 6 Digits Preset Counter |
| Option | Safety Cover |
| Power Source | AC 100 V, 1-Phase, 15 A, 50/60 Hz |
| Dimensions / Weight (Approx.) |
W900 × D600 × H1,050 mm/ 170 kg |
No.260 Foam Rubber Repetitive Compression Tester
