YASUDA SEIKI - Heat Sealer Series
- No.212 YSS Heat Sealer
- This tester is used to evaluate the thermal adhesion of cellophane tape, plastic film etc.
- The operator can set the thermal adhesion condition such as temperature, pressure, and time of heat sealing.
- The pressure is applied by the air cylinder to provide great operability.
YASUDA SEIKI - Heat Sealer Series
| YASUDA SEIKI No.212 YSS Heat Sealer | |
| Specification | |
| Seal Plate | Min. W5 mm to Max. W20 mm, L300 mm |
| Temperature Range |
Max. 300 °C *The surface flatness will only be ensured at the specified temperature. |
| Pressing Method | Pneumatic Cylinder, Stroke Max. 45 mm |
| Pressure Gauge | Max. 0.5 MPa (Scale 0.01 MPa) |
| Timer | Max. 99.99 sec |
| Accessory | Foot Switch |
| Option | Safety Cover, Jig for Hot Tack, Specimen Retaining, Air Compressor |
| Power Source | AC 100 V, 1-Phase, 15 A, 50/60 Hz |
| Air Source | 0.5 MPa or More |
Dimensions / |
Tester Body : W460 × D350 × H550 mm, 70 kg |
| Control Box : W200 × D330 × H400 mm, 35 kg | |
==============================
YASUDA SEIKI - Heat Sealer Series
==============================

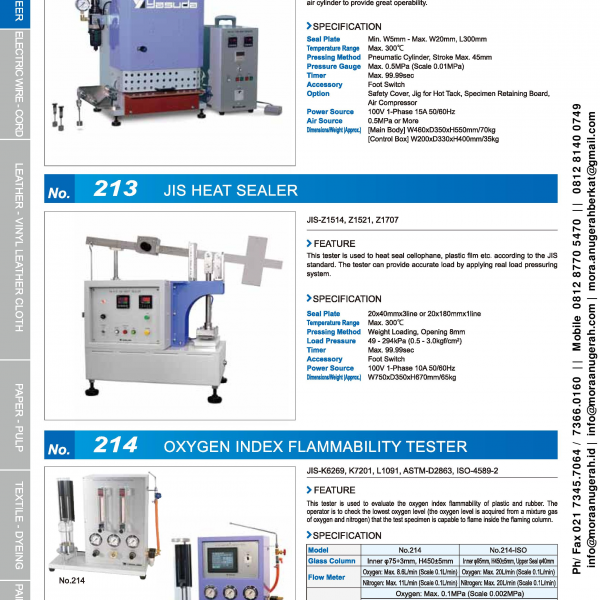

- No.213 JIS Heat Sealer
- Standard : JIS-Z1514, (Z1521), Z1707
- This tester is used to heat seal cellophane, plastic film etc. according to the JIS standard.
- The tester can provide accurate load by applying real load pressuring system.
| YASUDA SEIKI No.213 JIS Heat Sealer | |
| Specification | |
| Seal Plate | 20 × 40 mm × 3 line or 20 × 180 × 1 line |
| Temperature Range | Max. 300 °C *The surface flatness will only be ensured at the specified temperature. |
| Pressing Method | Weight Loading, Opening 8 mm |
| Load Pressure | 49 to 294 kPa (0.5 to 3.0 kgf/cm2) |
| Timer | Max. 99.99 sec |
| Accessory | Foot Switch |
| Power Source | AC 100 V, 1-Phase, 10 A, 50/60 Hz |
| Dimensions / Weight (Approx.) |
W750 × D350 × H670 mm, 65 kg |
