Melt Flow Index Tester
Harga : Rp 0.00
Brand : Yasuda Seiki,Testex,Cometech,Drick,BYK
Stok : In Stock
Melt Flow Index Tester

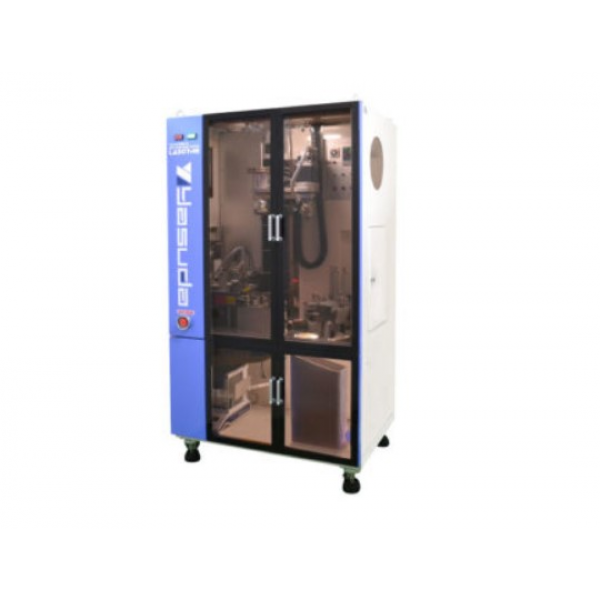

- No.120 LABOT MELT FLOW INDEX TESTER (FULLY AUTOMATIC)
- Standard Method :JIS-K6719-1/2 # K6921-2 # K6922-2 # K6923-1 # K6924-1 # K6926-2 # K7210 # ASTM-D1238 # ISO-1133
- This tester is equipped with robotic mechanism which enables fully automatic melt flow index tests up to a maximum of 50 samples (standard of 12 samples). The test conditions and the outputs can be set and observed through the computer software.
| No.120 MELT FLOW INDEX TESTER (Fully Automatic) | |
| Specification | |
| Hangings | 12, 24, 50 Hangings (3 kinds) |
| Die | φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm |
| Piston | Head Diameter φ 9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm |
| Cylinder | Inner φ9.550 ± 0.007 mm, L160 mm |
| Temperature Range | Max. 300 °C (Option: 400 °C) |
| Weight Load | 0.325, 1.20, 2.16, 3.80, 5.00, 10.00 kgf and 21.60 kgf |
| Test Method | Method A : Manual (Option: Automatic) Method B : Automatic |
| Specimen Feeding | Automatic |
| Weight Loading | Automatic |
| Weight Change | Manual (Option: Automatic) |
| Cylinder Cleaning | Automatic (Solvent cleaning can also be automatic) |
| Die Cleaning | Automatic |
| Piston Cleaning | Automatic |
| Die Cleaning Rod Cleaning |
Automatic |
| Cleaning Gauze Feeding | Automatic |
| Data Processing | Method A : Manual (Option: Automatic) Method B : Automatic |
| Method B Measuring | Rotary Encoder |
| Software | Windows Compatible |
| Accessories | Cleaning Rod (Die & Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder, Infundibulum Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun |
| Option | Hastelloy Spec, Specimen Purging Device, Specimen Drying Device, Air Compressor, Temperature Calibration Device, Exhaust Fan, Smoke-Detection Sensor |
| Power Source | AC 100 V, 1-Phase, 15 A, 50/60 Hz AC 200 V, 1-Phase, 20 A, 50/60 Hz (ISO-1133-2 Compatable Type) |
| Air Source | 0.5 MPa or More |
| Dimensions / Weight (Approx.) |
Hangings : W950 × D700 × H1,750 mm / 300 Kg Hangings : W1,100 × D700 × H1,750 mm / 350 Kg |
Melt Flow Index Tester
- Click Here : Melt Flow Index Catalogue

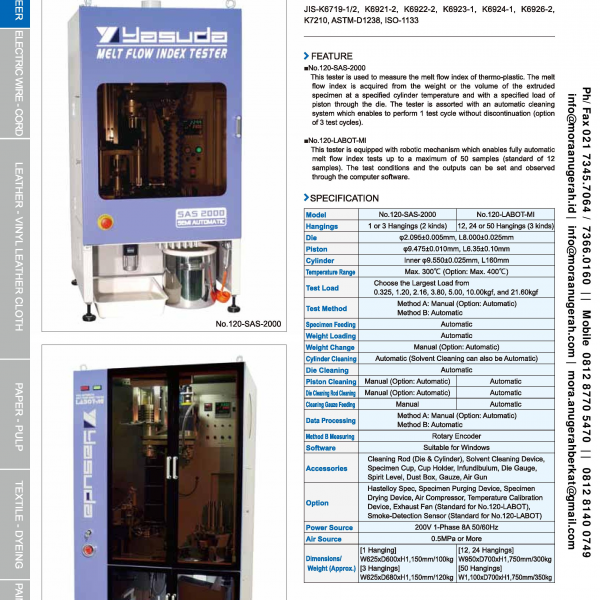

- No.120-SAS MELT FLOW INDEX TESTER AUTOMATIC
- Standard Method : JIS-K6719-1/2 # K6921-2 # K6922-2 # K6923-1 # K6924-1 # K6926-2 # K7210 # ASTM-D1238 # ISO-1133
- This tester is used to measure the melt flow index of thermo-plastic. The melt flow index is acquired from the weight or the volume of the extruded specimen at a specified cylinder temperature and with a specified load of piston through the die. The tester is assorted with an automatic cleaning system which enables to perform 1 test cycle without discontinuation (option of 3 test cycles).
| No.120-SAS MELT FLOW INDEX TESTER (Automatic) | |
| Specification | |
| Hangings | 1 or 3 Hangings (2 kinds) |
| Die | φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm |
| Piston | Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm |
| Cylinder | Inner φ9.550 ± 0.007 mm, L160 mm |
| Temperature Range | Max. 300 °C (Option: Max. 400 °C) |
| Weight Load | Choose the Largest Load from 0.325 ; 1.20 ; 2.16 ; 3.80 ; 5.00 ; 10.00 ; 21.60 kgf |
| Test Method | Method A : Manual (Option : Automatic) Method B : Automatic |
| Specimen Feeding | Automatic |
| Weight Loading | Automatic |
| Weight Change | Manual (Option: Automatic) |
| Cylinder Cleaning | Automatic (Solvent Cleaning can also be Automatic) |
| Die Cleaning | Automatic |
| Piston Cleaning | Manual (Option: Automatic) |
| Die Cleaning Rod Cleaning |
Manual (Option: Automatic) |
| Cleaning Gauze Feeding | Manual |
| Data Processing | Method A : Manual (Option : Automatic) Method B : Automatic |
| Method B Measuring | Rotary Encoder |
| Software | Windows Compatible |
| Accessories | Cleaning Rod (Die & Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder, Infundibulum Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun |
| Option | Hastelloy Spec, Specimen Purging Device, Specimen Drying Device, Air Compressor, Temperature Calibration Device, Exhaust Fan (Standard for No.120-LABOT), Smoke-Detection Sensor |
| Power Source |
AC 100 V, 1-Phase, 15 A, 50/60 Hz AC 200 V, 1-Phase, 20 A, 50/60 Hz (ISO-1133-2) (Compatable Type) |
| Air Source | 0.5 MPa or More |
| Dimensions / Weight (Approx.) |
1 Hangings : W625 × D600 × H1,150 mm, 100 kg 3 Hangings : W625 × D680 × H1,150 mm, 120 kg |
Melt Flow Index Tester
- Click Here : Melt Flow Index Catalogue
- No.120-FWP MELT FLOW INDEX TESTER (MANUAL)
- Standard Method : JIS-K6719-1/2,K6921-2,K6922-2,K6923-1,K6924-1,K6926-2,K7210,ASTM-D1238,ISO-1133
- This tester is for measuring the melt flow index of thermo-plastic. The test can be conducted easily, from setting the test condition up to data analysis, using a 5.7” full color touch panel.
| No.120 - FWP Melt Flow Index Tester (Manual) | |
| Specification | |
| Hangings | 1 Hanging |
| Die | φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm |
| Piston | Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm |
| Cylinder | Inner φ9.550 ± 0.007 mm, L160 mm |
| Temperature Range | Max. 400 °C |
| Test Load | Initial 0.325 kgf Choose 1 kind from 1.20 ; 2.16 ; 3.80 ; or 5.00 kgf. (Option: 10.00 and 21.60 kgf) |
| Test Method | Method A : Manual (Option: Automatic Cutter) Method B : Automatic |
| Data Processing | Method A : Automatic (Measuring the weight of the cut off specimen is done by hand) Method B : Automatic |
| Method B Measuring | Rotary Encoder |
| Standard Specification | SD Card Slot, LAN Port |
| Option | Mini Printer, Method A Air Pressure Type Automatic Cutter, Manual Type Die Plug, Safety Cover with Interlock Attached, Half Die, Air Pressure Type Automatic Loader (No.120-FWP-W) |
| Accessories | Cleaning Rod (Die & Cylinder), Injection Rod, Funnel, Die Gauge, Method A Cutting Knife, Spirit Level, Gauze |
| Power Source | AC 100 V, 1-Phase, 15 A, 50/60 Hz or AC 200 V, 1-Phase, 10 A, 50/60 Hz |
| Air Source | 0.5 MPa or More (For Method A Pneumatic Type Weight Loading Device Specification) |
| Dimensions / Weight (Approx.) |
No.120FWP : W700 × D450 × H1,020 mm / 75 kg No.120FWP-WP-W : W710 × D450 × H1,060 mm/ 120 kg |
Berikut adalah Material Testing Equipment yang kami miliki berikut adalah link / tautan produk sebagai berikut :
- CLICK HERE : YASUDA SEIKI - Plastic & Rubber Testing Catalog
- CLICK HERE : YASUDA SEIKI - Electric Wire & Cable Testing Catalog
- CLICK HERE : YASUDA SEIKI - Pulp & Paper Testing Catalog
- CLICK HERE : YASUDA SEIKI - Leather, Vinyl Leather Testing Catalog
- CLICK HERE : DRICK INST - Packaging Testing Catalog
- CLICK HERE : CELL INST - Plastic,Rubber,Tape/Film & Polymer Catalog
- CLICK HERE : TESTEX INST - Fabric, Yarn & Textile/Garment Testing Catalog
Melt Flow Index Tester
NB : Perusahaan kami PT. Mora Anugerah Berkat Telah Terdaftar di E-Catalog Versi 6., berikut linknya :
Click Here : Melf Flow Index Test E-Catalog Brosur
Untuk informasi,pertanyaan dan pemesanan silahkan hubungi kami di :
- PT. Mora Anugerah Berkat [M.A.B]
- Click Here : Melt Flow Index Catalogue
- Alamat : Jl.Taman Asri Blok M No.36 Kel.Cipadu Kec.Larangan, Kota Tangerang - Provinsi Banten
- Phone : 021 7345.7064
- Mobile : 0812.8140.0749 / 0812.8770.5470
- Chat : Whats App, Line, WeChat, Telegram
- Website : www.moraanugerah.id - www.moraanugerah.com
- Email : info@moraanugerah.com - info@moraanugerah.id - marketing_div@moraanugerah.com
